Bagad

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0743 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

Report thread · updated 2026-08-17T06:06:54+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Rebuilt and audited clean (0 findings) after the run side completed its atlases.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0743
District	Bhavnagar
Taluka	Mahuva
River	Bagad
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Earthen dam Roller filled zonal
FRL (m)	60.41
HFL (m)	63.28
Top of dam (m)	66.78
Spillway crest (m)	60.41
Gross storage (Mm³)	11.18
Catchment (km²)	145.0
Bed level, adopted (m)	51.55
Head, documented (m)	15.23
Head in DEM before correction (m)	14.46
Head after DEM correction (m)	15.23
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.24	7	1,544.88	1,594.06	1,081.97	41.77	`../Bagad/S_EG_00__S02-FW-PIP/`	`c38ff8befab639bb`	2026-09-29T21:32
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	7	—	—	—	—	`../Bagad/S_EG_00_REF__S01-FW-REF/`	`a698c9a0eddc1fa4`	2026-09-29T21:31
`S_EG_01`	`S03-DF-REF`	retained	clean	0.02	7	—	—	—	—	`../Bagad/S_EG_01__S03-DF-REF/`	`f4625ac0d4c8b5bf`	2026-09-29T21:32
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.05	7	3,182.65	3,585.25	1,081.97	59.87	`../Bagad/S_EG_03__S05-DF-PIP/`	`9e5f74cc68502c5d`	2026-09-29T21:33
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.05	7	2,549.09	—	1,740.30	60.00	`../Bagad/S_EG_05_SBL__S08-SO-L/`	`a91645553b48f64b`	2026-09-29T21:59
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.04	7	2,566.34	—	1,861.80	60.00	`../Bagad/S_EG_05_SBR__S09-SO-H/`	`8b5f0b796addbc95`	2026-09-29T21:59

Assets

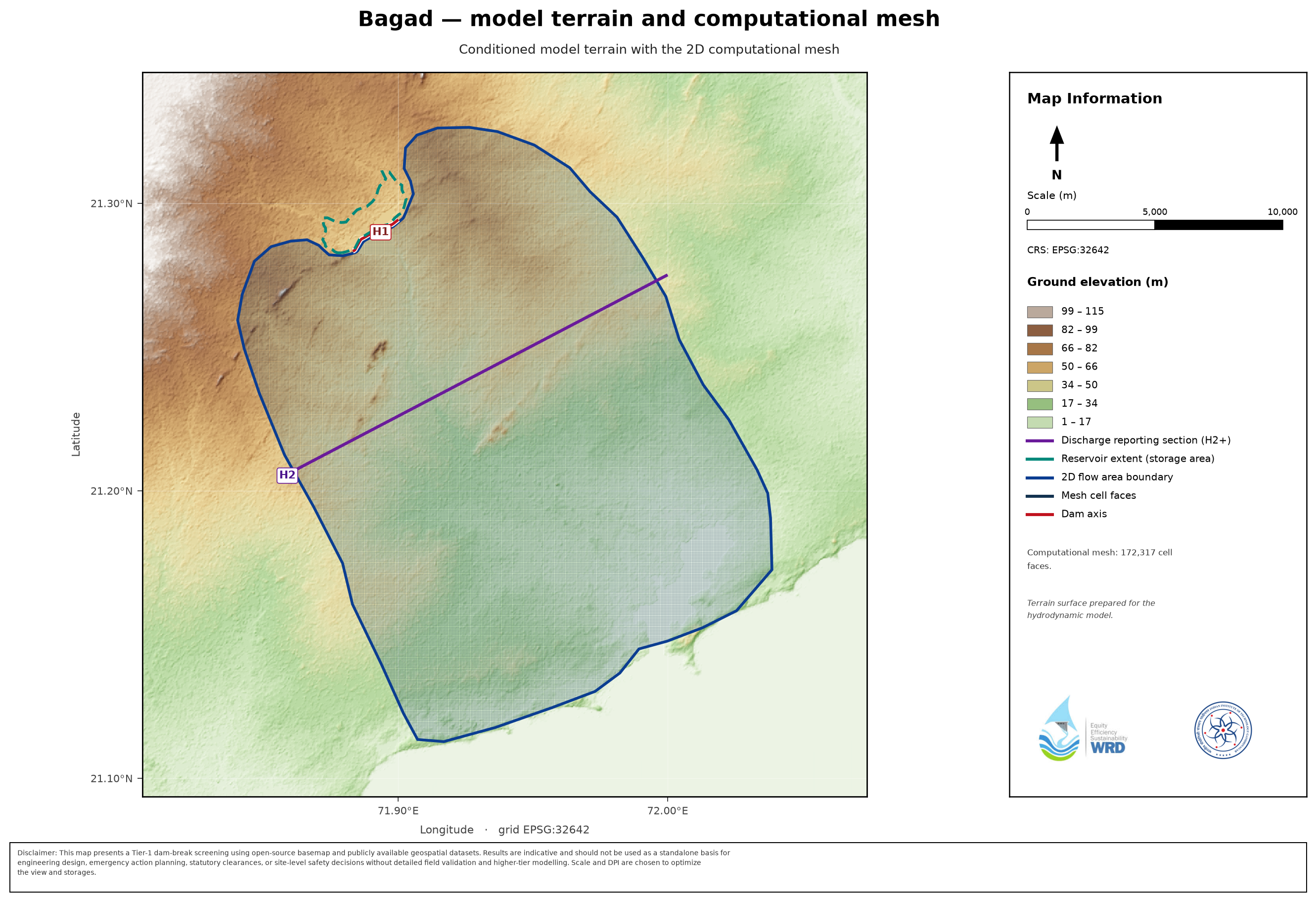

terrain plate (Fig 3.1): _maps/Bagad__dem.png

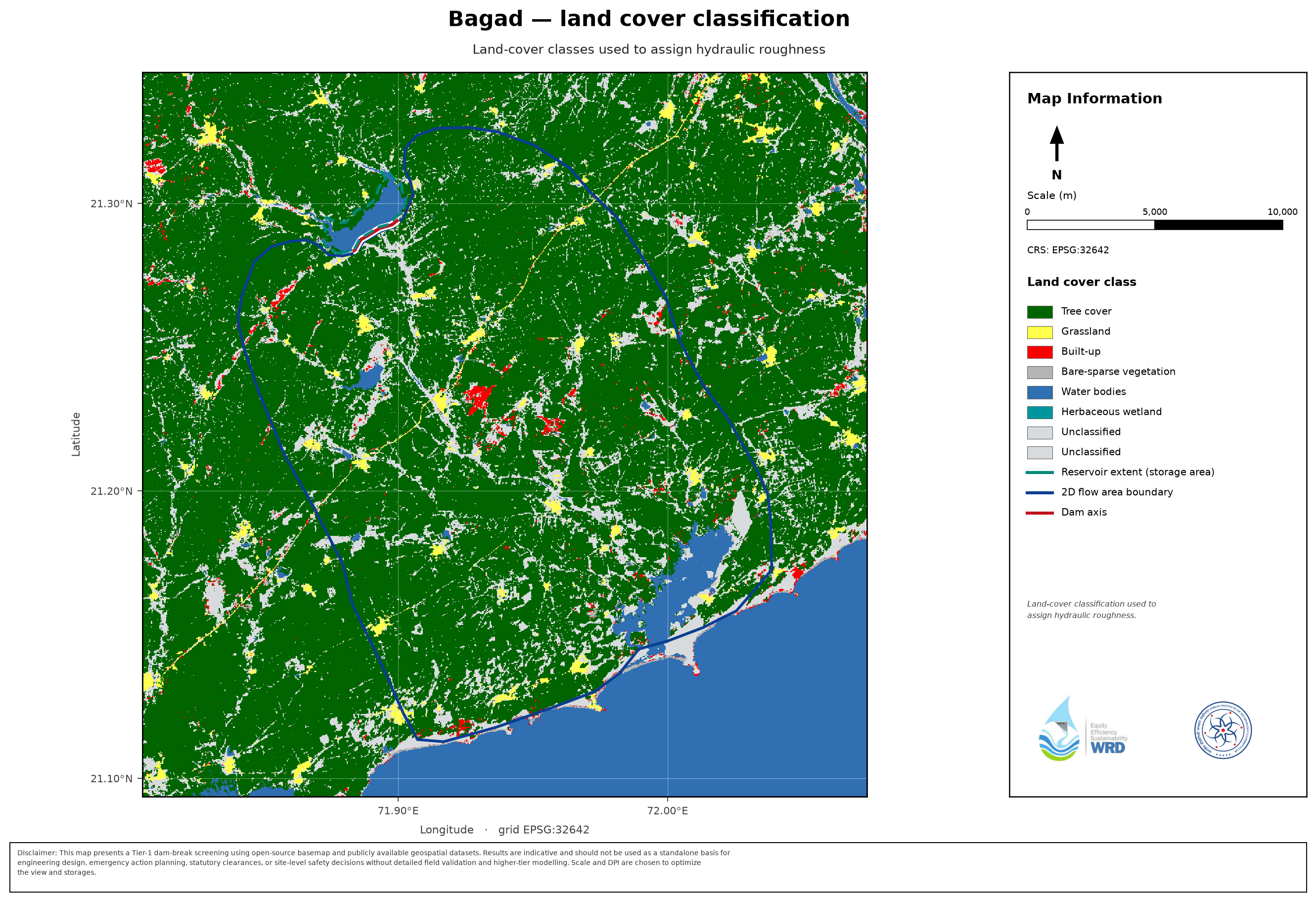

land-cover plate (Fig 3.2): _maps/Bagad__lulc.png
storage curve: _storage_curves/Bagad__storage_elevation.csv
inflow flood hydrograph: _infofiles/Bagad__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Bagad__inflow_baseflow_hydrograph.csv

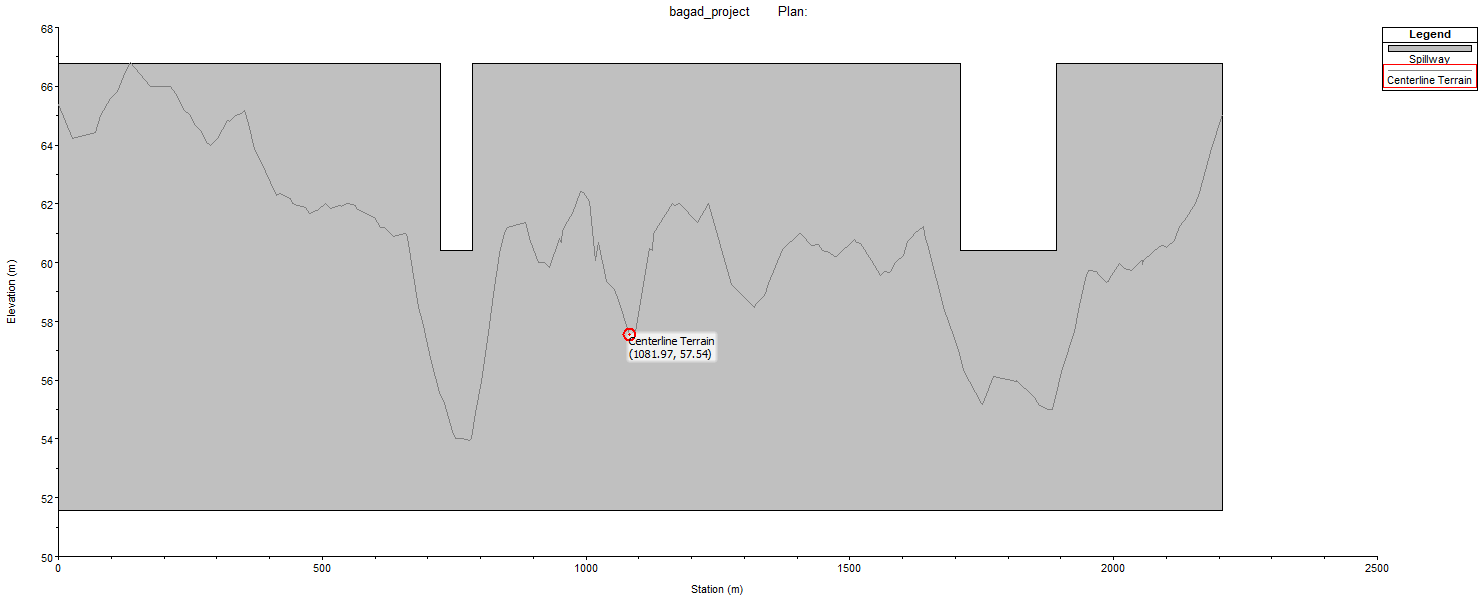

breach location (supplier): _infofiles/Bagad__breach_location.png

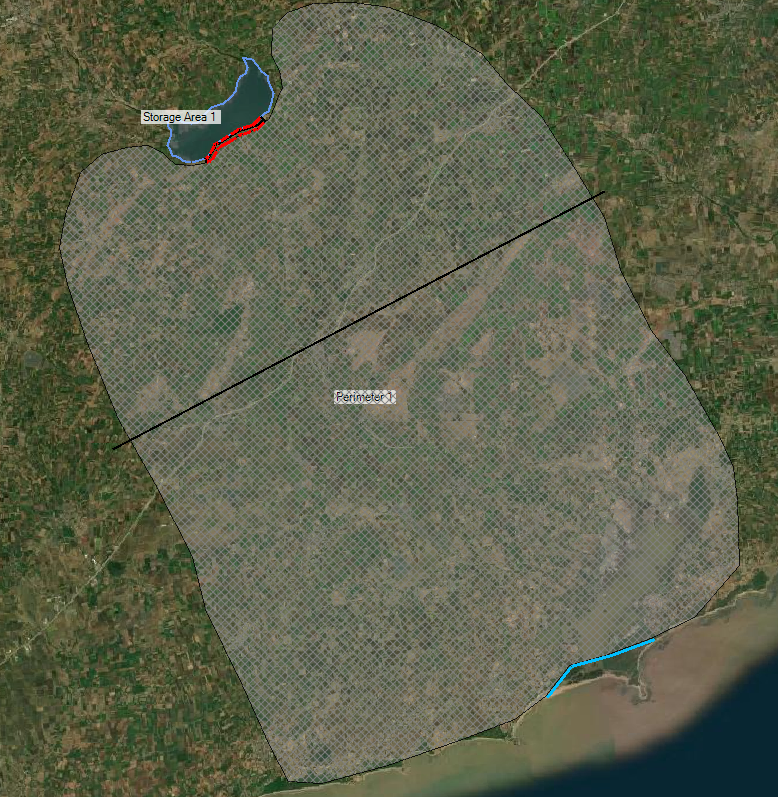

mesh: _infofiles/Bagad__mesh.png
infofile: _infofiles/Bagad__infofile.csv
DEM correction: _infofiles/Bagad__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Bagad
PAR / exposure: _par/Bagad
EAP figures (exposure curve + warning scatter, log y): _figures/Bagad
atlases: Bagad__S_EG_00_REF__S01-FW-REF, Bagad__S_EG_00__S02-FW-PIP, Bagad__S_EG_01__S03-DF-REF, Bagad__S_EG_03__S05-DF-PIP, Bagad__S_EG_05_SBL__S08-SO-L, Bagad__S_EG_05_SBR__S09-SO-H

Defect ledger

run id	status	replacement sha	old sha (do not use)
`S_EG_00`	DEFECT FIXED	`c38ff8befab639bb`	`2d362b4ba7f19eba`
`S_EG_00_REF`	DEFECT FIXED	`a698c9a0eddc1fa4`	`ac1e5efa28ce5f71`
`S_EG_01`	DEFECT FIXED	`f4625ac0d4c8b5bf`	`f1a004fdabb6189e`
`S_EG_03`	DEFECT FIXED	`9e5f74cc68502c5d`	`6dea657cae9124a4`
`S_EG_05_SBL`	DEFECT FIXED	`a91645553b48f64b`	`2fc9fb9d1afa41f7`
`S_EG_05_SBR`	DEFECT FIXED	`8b5f0b796addbc95`	`507d1dbc6c24d79c`
