Bamathiya-2

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04LH0262 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2.1 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (THREE_ROOT_ACTUAL_HASH_READBACK; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04LH0262
District	Jamnagar
Taluka	Jam Jodhpur
River	Kutch and
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Earthen
FRL (m)	32.1564
HFL (m)	33.071
Top of dam (m)	34.747
Spillway crest (m)	32.1564
Gross storage (Mm³)	1.18
Catchment (km²)	7.122467
Bed level, adopted (m)	22.0
Head, documented (m)	12.747
Head in DEM before correction (m)	-115.48
Head after DEM correction (m)	12.747
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

Assets pending — not ready to print: inflow flood, inflow baseflow, breach location

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.36	8	363.18	460.43	648.59	19.66	`../Bamathiya-2/S_EG_00__S02-FW-PIP/`	`1382016e706b9f4f`	2026-10-14T20:20
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.03	8	—	—	—	—	`../Bamathiya-2/S_EG_00_REF__S01-FW-REF/`	`5a72ed995711b725`	2026-10-14T20:14
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	8	—	—	—	—	`../Bamathiya-2/S_EG_01__S03-DF-REF/`	`cceb30194b57859a`	2026-10-14T20:15
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.18	8	510.16	638.67	648.59	22.07	`../Bamathiya-2/S_EG_03__S05-DF-PIP/`	`c4d0bfb82a0b63fb`	2026-10-14T20:21
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.06	8	337.46	—	214.80	60.00	`../Bamathiya-2/S_EG_05_SBL__S08-SO-L/`	`f35150dde4920f7c`	2026-10-14T20:59
`S_EG_05_SBR`	`S09-SO-H`	retained	note	1.05	8	342.45	—	231.00	60.00	`../Bamathiya-2/S_EG_05_SBR__S09-SO-H/`	`668c79a3607f3391`	2026-10-14T20:59

Assets

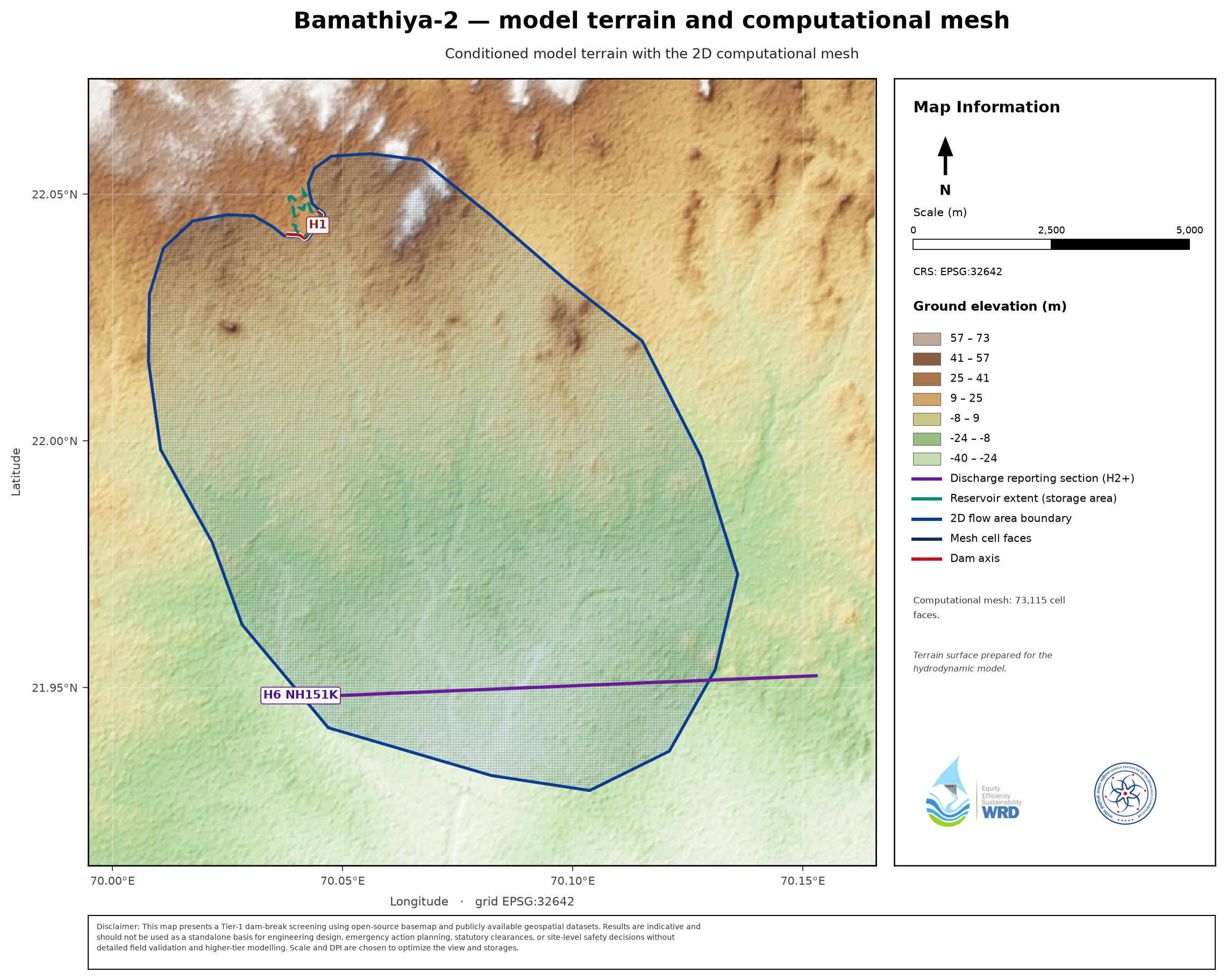

terrain plate (Fig 3.1): _maps/Bamathiya-2__dem.png

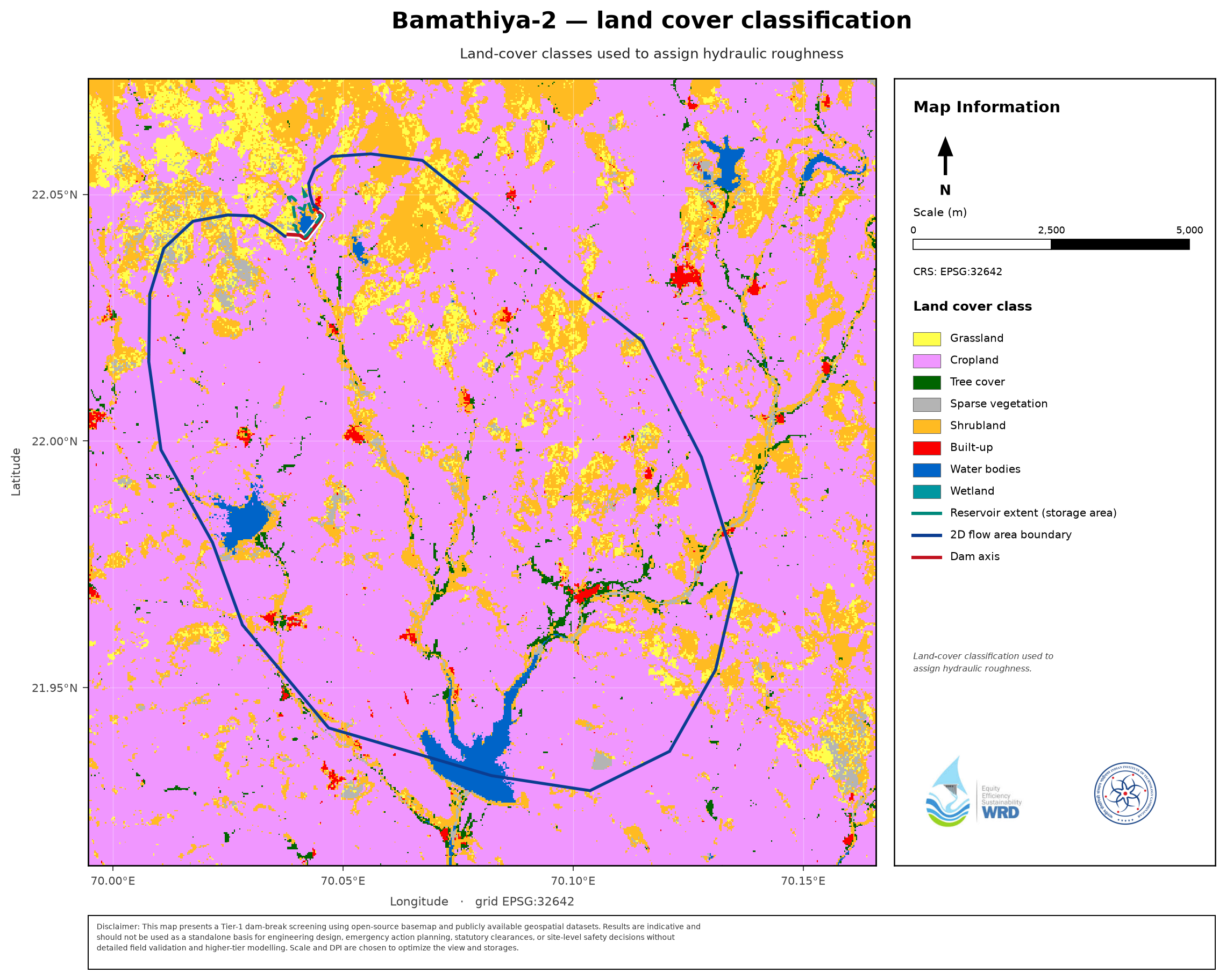

land-cover plate (Fig 3.2): _maps/Bamathiya-2__lulc.png
storage curve: _storage_curves/Bamathiya-2__storage_elevation.csv
inflow flood hydrograph: —
inflow baseflow hydrograph: —
breach location (supplier): —

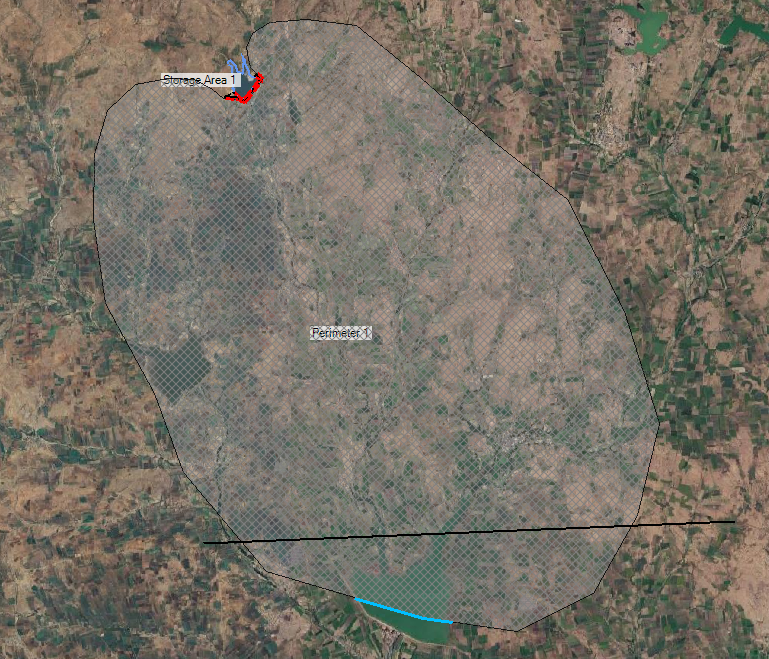

mesh: _infofiles/Bamathiya-2__mesh.png
infofile: _infofiles/Bamathiya-2__infofile.csv
DEM correction: _infofiles/Bamathiya-2__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Bamathiya-2
PAR / exposure: _par/Bamathiya-2
EAP figures (exposure curve + warning scatter, log y): _figures/Bamathiya-2
atlases: Bamathiya-2__S_EG_00_REF__S01-FW-REF, Bamathiya-2__S_EG_00__S02-FW-PIP, Bamathiya-2__S_EG_01__S03-DF-REF, Bamathiya-2__S_EG_03__S05-DF-PIP, Bamathiya-2__S_EG_05_SBL__S08-SO-L, Bamathiya-2__S_EG_05_SBR__S09-SO-H
