Goma

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0751 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

Report thread · updated 2026-08-17T06:43:58+00:00
report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

Audits clean with zero findings after the run side completed its scenario re-render.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0751
District	Botad
Taluka	Botad
River	Goma
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Earthen
FRL (m)	126.5
HFL (m)	128.81
Top of dam (m)	130.6
Spillway crest (m)	126.5
Design spillway capacity (m³/s)	1189.29
Gross storage (Mm³)	15.75
Catchment (km²)	155.4
Bed level, adopted (m)	115.0
Head, documented (m)	15.6
Head in DEM before correction (m)	14.853
Head after DEM correction (m)	15.6
Mesh	60*60 m
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.16	8	2,126.73	3,137.72	714.50	49.68	`../Goma/S_EG_00__S02-FW-PIP/`	`48e9ab3ff76e3cb8`	2026-08-16T12:49
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Goma/S_EG_00_REF__S01-FW-REF/`	`1b9e176395e40b6c`	2026-08-16T06:46
`S_EG_01`	`S03-DF-REF`	retained	clean	0.05	8	—	—	—	—	`../Goma/S_EG_01__S03-DF-REF/`	`95f4abe1bc9481cb`	2026-10-01T07:56
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.23	8	5,320.93	7,087.37	714.50	69.65	`../Goma/S_EG_03__S05-DF-PIP/`	`8c80117532d9a06c`	2026-10-03T03:06
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.05	8	2,535.88	—	56.09	60.00	`../Goma/S_EG_05_SBL__S08-SO-L/`	`ff97875dd5438d71`	2026-08-17T02:28
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.04	8	2,394.07	—	160.27	60.00	`../Goma/S_EG_05_SBR__S09-SO-H/`	`ab83f72de0025962`	2026-08-17T03:19

Assets

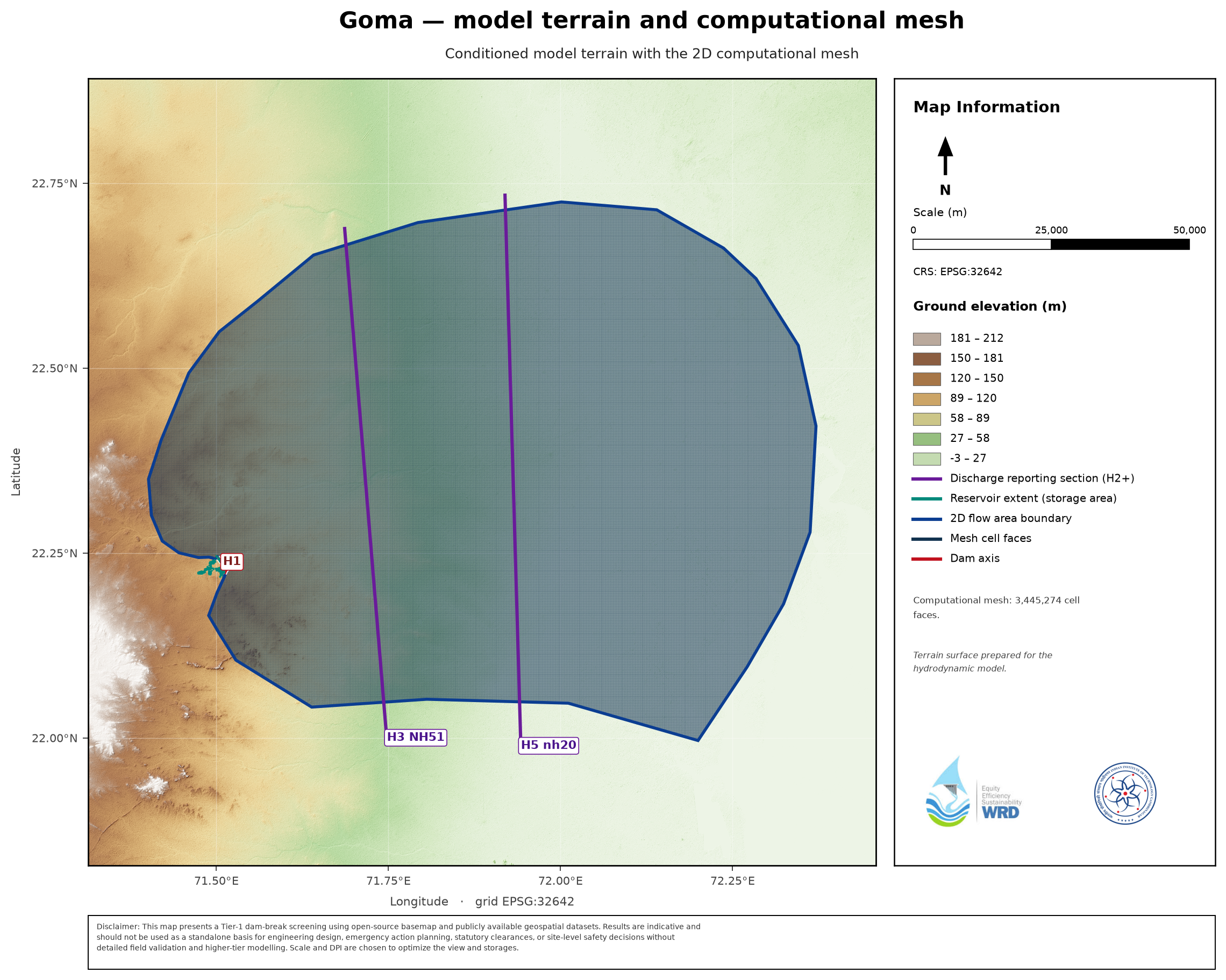

terrain plate (Fig 3.1): _maps/Goma__dem.png

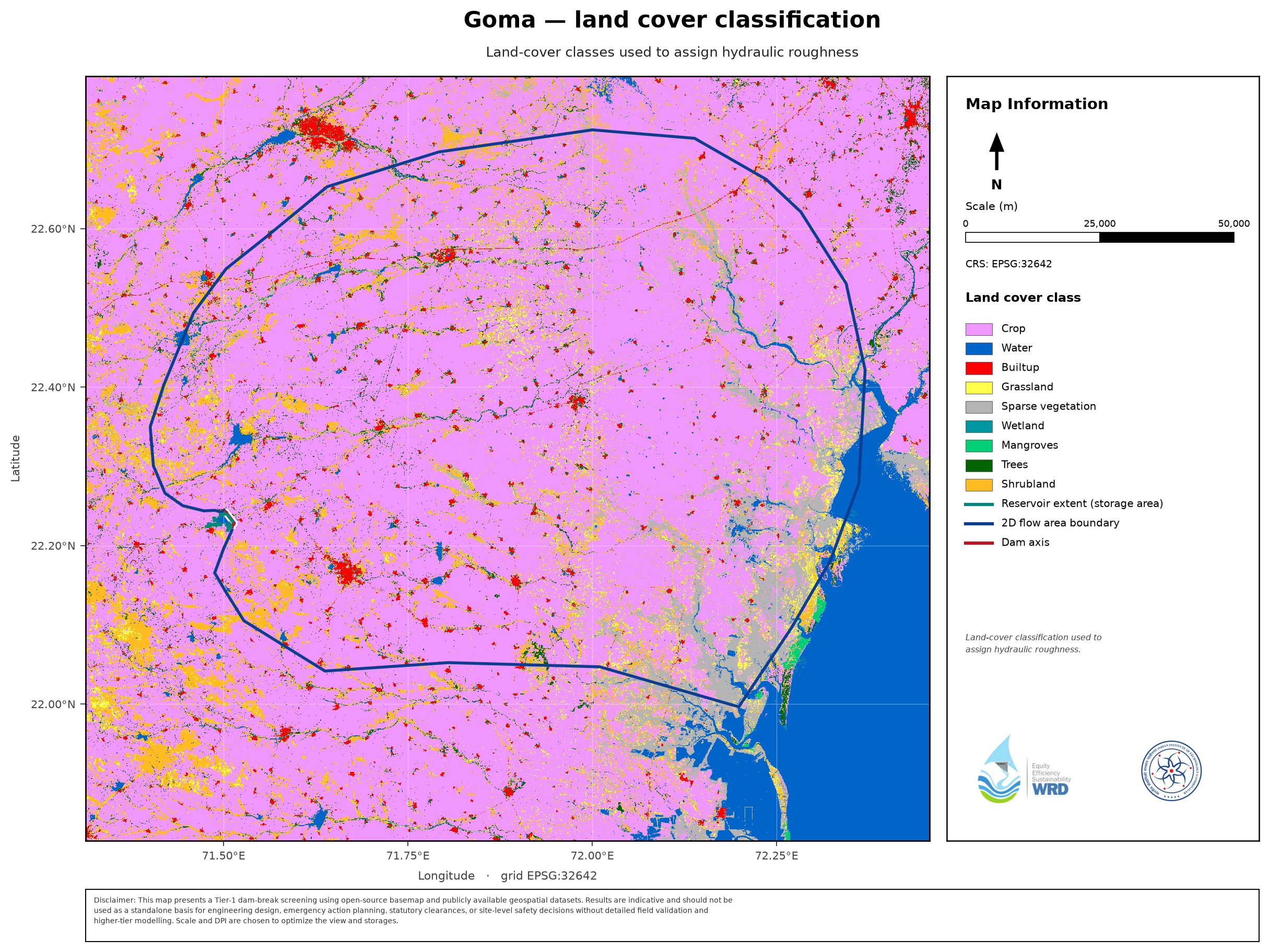

land-cover plate (Fig 3.2): _maps/Goma__lulc.png
storage curve: _storage_curves/Goma__storage_elevation.csv
inflow flood hydrograph: _infofiles/Goma__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Goma__inflow_baseflow_hydrograph.csv

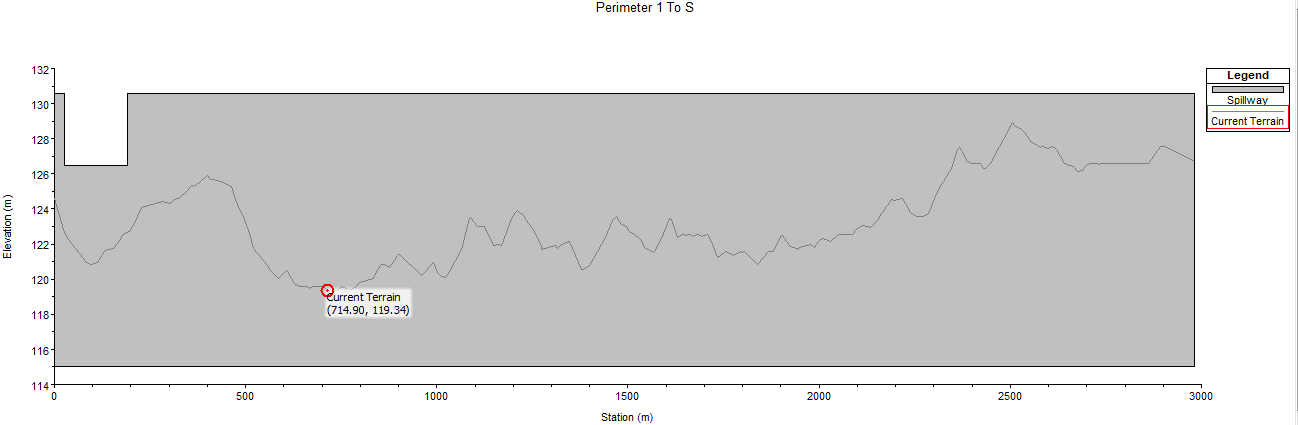

breach location (supplier): _infofiles/Goma__breach_location.png

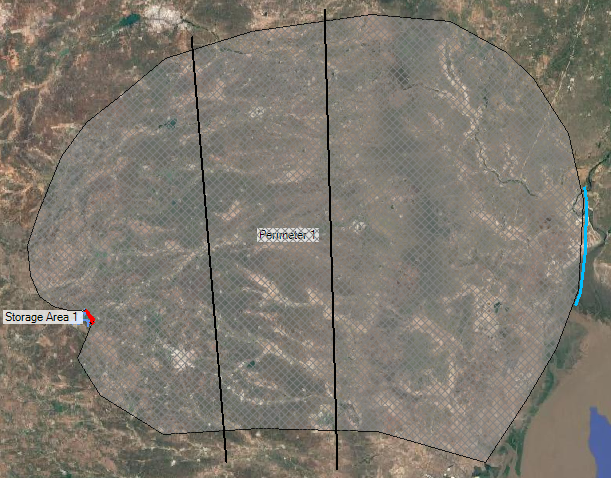

mesh: _infofiles/Goma__mesh.png
infofile: _infofiles/Goma__infofile.csv
DEM correction: _infofiles/Goma__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Goma
PAR / exposure: _par/Goma
EAP figures (exposure curve + warning scatter, log y): _figures/Goma
atlases: Goma__S_EG_00_REF__S01-FW-REF, Goma__S_EG_00__S02-FW-PIP, Goma__S_EG_01__S03-DF-REF, Goma__S_EG_03__S05-DF-PIP, Goma__S_EG_05_SBL__S08-SO-L, Goma__S_EG_05_SBR__S09-SO-H

Defect ledger

run id	status	replacement sha	old sha (do not use)
`S_EG_00`	DEFECT FIXED	`48e9ab3ff76e3cb8`	`10d56ed9058e4d35`
`S_EG_00_REF`	DEFECT FIXED	`1b9e176395e40b6c`	`a5a369c0fb04929d`
`S_EG_01`	DEFECT FIXED	`95f4abe1bc9481cb`	`f545df60e6b42a7a`
`S_EG_03`	DEFECT FIXED	`8c80117532d9a06c`	`555a7a9ab7b88930`
`S_EG_05_SBL`	DEFECT FIXED	`ff97875dd5438d71`	`7b5b974eb459c85d`
`S_EG_05_SBR`	DEFECT FIXED	`ab83f72de0025962`	`f17969d51c1b155f`
