Madhuvanti

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04HH0292 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04HH0292
District	Junagadh
Taluka	Mendarda
River	Madhuvanti
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Earthen dam
FRL (m)	165.19
HFL (m)	167.02
Top of dam (m)	169.46
Spillway crest (m)	165.19
Design spillway capacity (m³/s)	26500.0
Gross storage (Mm³)	13.061
Catchment (km²)	45.32
Bed level, adopted (m)	147.0
Head, documented (m)	22.46
Head in DEM before correction (m)	34.45
Head after DEM correction (m)	22.46
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.06	8	4,503.48	3,676.71	914.00	40.69	`../Madhuvanti/S_EG_00__S02-FW-PIP/`	`f38f9cc597d729ac`	2026-08-27T14:28
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Madhuvanti/S_EG_00_REF__S01-FW-REF/`	`7146b63cafd29340`	2026-08-27T08:41
`S_EG_01`	`S03-DF-REF`	retained	clean	0.04	8	—	—	—	—	`../Madhuvanti/S_EG_01__S03-DF-REF/`	`9c5e1b487e168f0a`	2026-08-27T08:45
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.06	8	6,084.88	4,955.85	914.00	46.96	`../Madhuvanti/S_EG_03__S05-DF-PIP/`	`aa382e41f835199e`	2026-08-27T14:32
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.04	8	6,296.06	—	218.00	60.00	`../Madhuvanti/S_EG_05_SBL__S08-SO-L/`	`c083a8a8f7dc4d16`	2026-08-27T10:54
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.05	8	6,314.58	—	340.87	60.00	`../Madhuvanti/S_EG_05_SBR__S09-SO-H/`	`faa171156b7e0eab`	2026-08-27T10:58

Assets

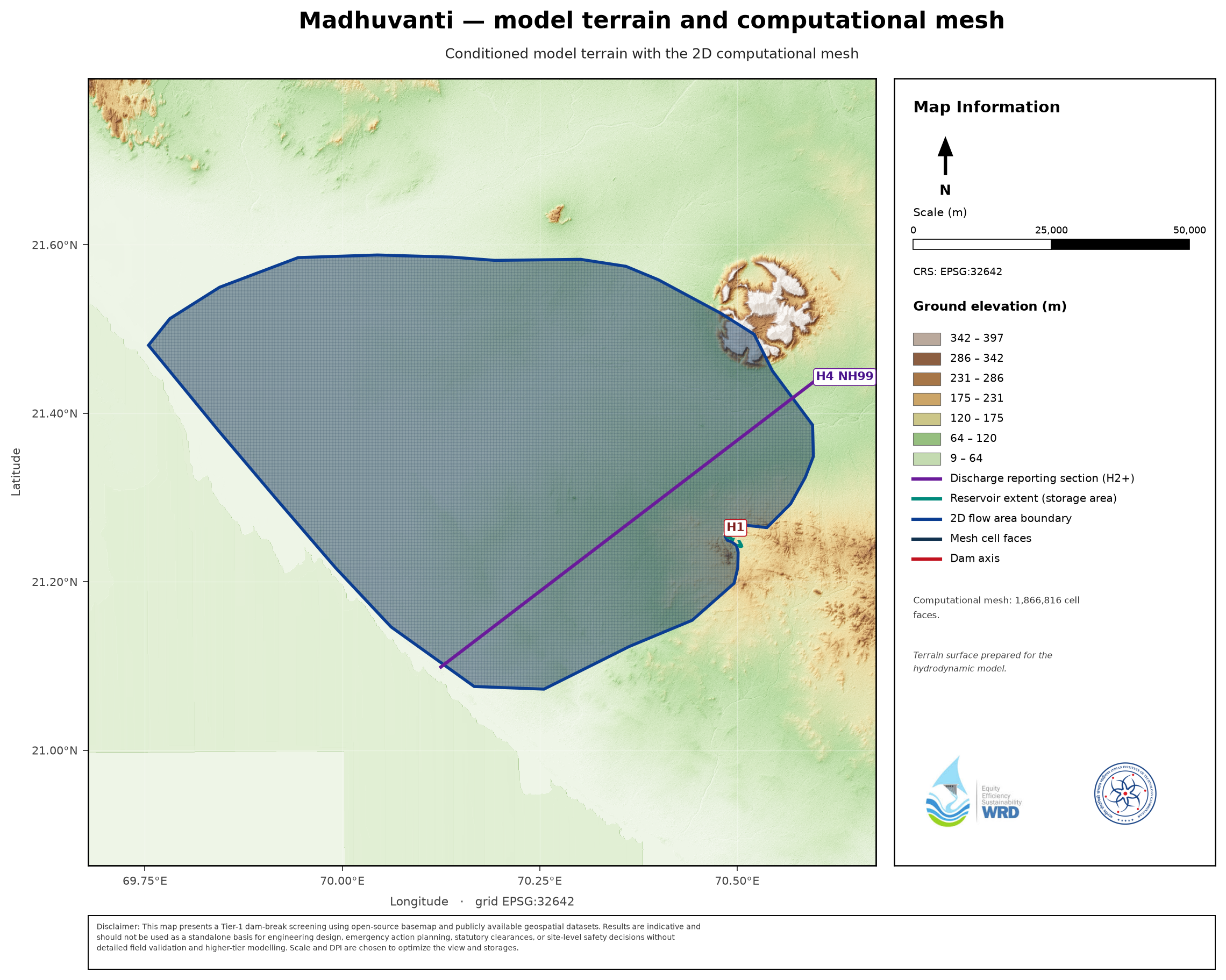

terrain plate (Fig 3.1): _maps/Madhuvanti__dem.png

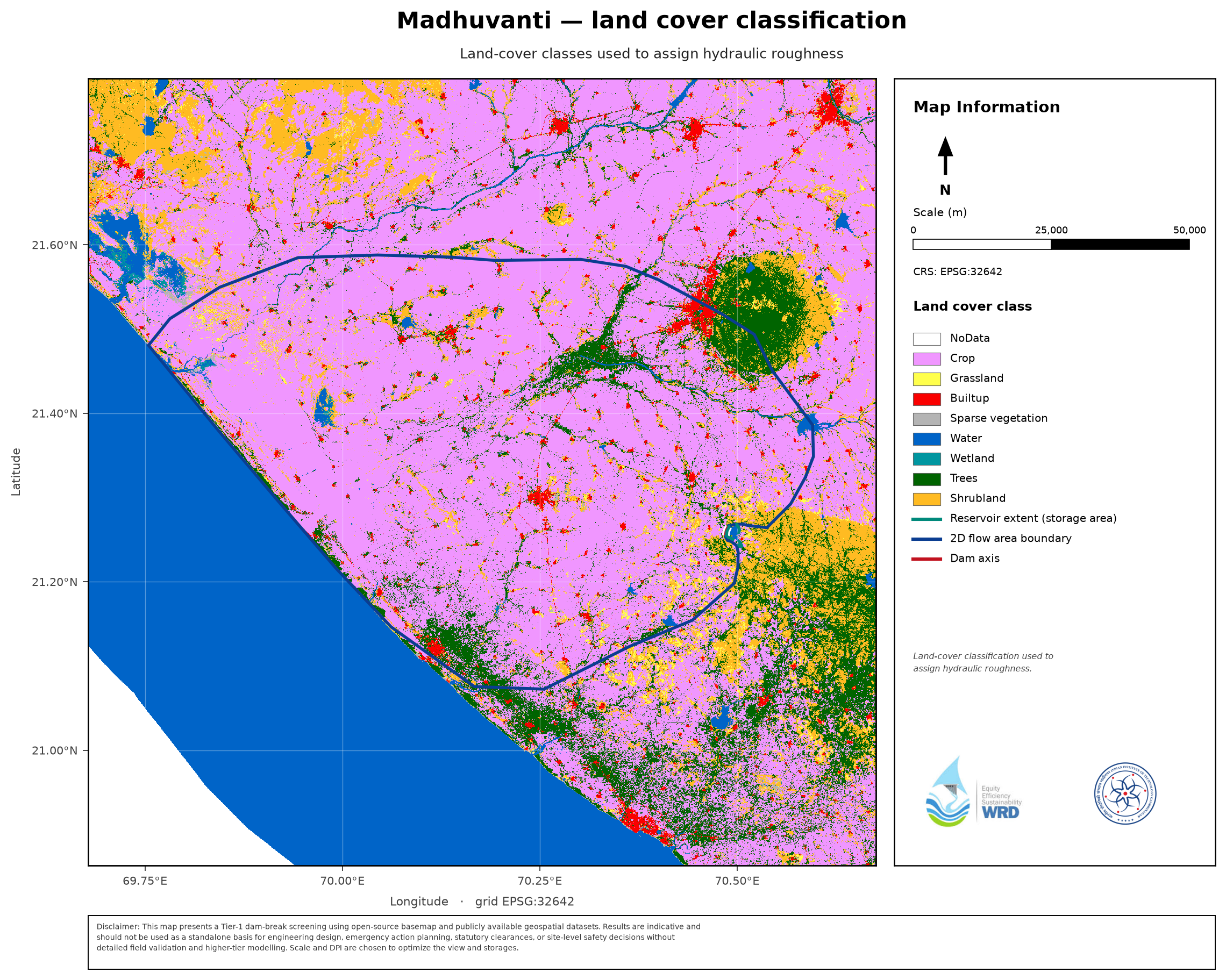

land-cover plate (Fig 3.2): _maps/Madhuvanti__lulc.png
storage curve: _storage_curves/Madhuvanti__storage_elevation.csv
inflow flood hydrograph: _infofiles/Madhuvanti__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Madhuvanti__inflow_baseflow_hydrograph.csv

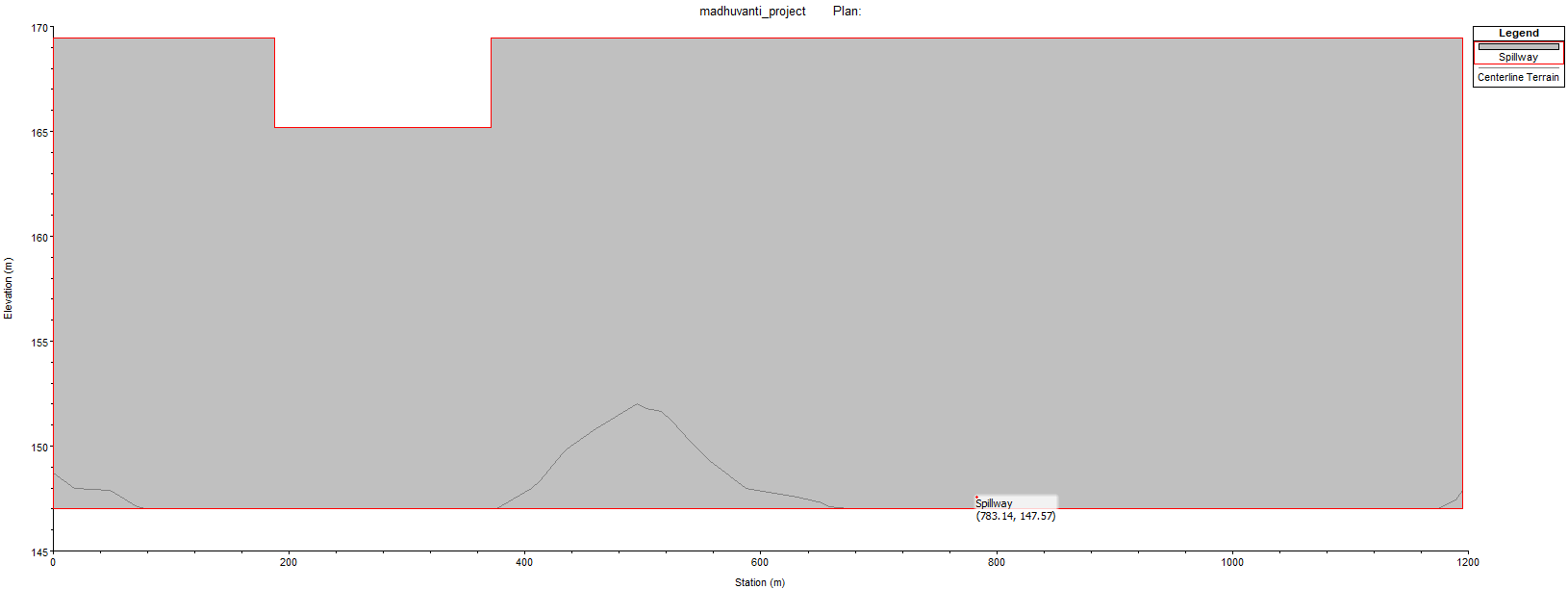

breach location (supplier): _infofiles/Madhuvanti__breach_location.png

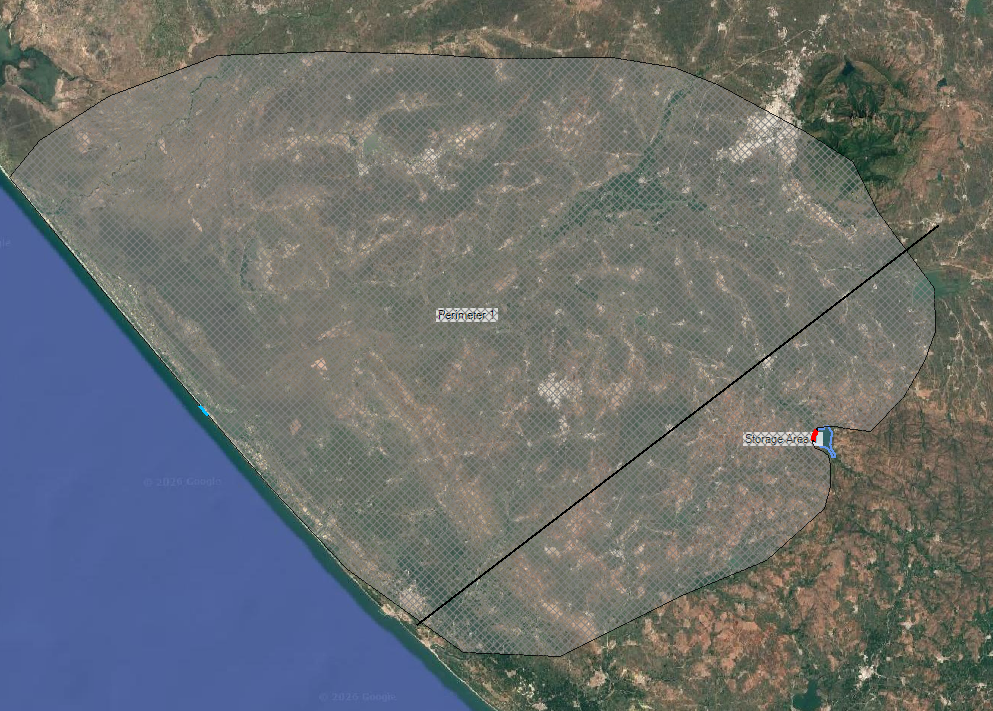

mesh: _infofiles/Madhuvanti__mesh.png
infofile: _infofiles/Madhuvanti__infofile.csv
DEM correction: _infofiles/Madhuvanti__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Madhuvanti
PAR / exposure: _par/Madhuvanti
EAP figures (exposure curve + warning scatter, log y): _figures/Madhuvanti
atlases: Madhuvanti__S_EG_00_REF__S01-FW-REF, Madhuvanti__S_EG_00__S02-FW-PIP, Madhuvanti__S_EG_01__S03-DF-REF, Madhuvanti__S_EG_03__S05-DF-PIP, Madhuvanti__S_EG_05_SBL__S08-SO-L, Madhuvanti__S_EG_05_SBR__S09-SO-H
