Puna

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04MH0084 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

Report thread · updated 2026-09-03T03:03:56.773360+00:00
report: current — V2.1 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_ROOT_DELIVERY_READBACK; format PASS)DBA: deliveredEAP: deliveredPCI: delivered

PIC GJ04MH0084: Codex-validated DBA, EAP and PCI set completed from the accepted HDF master; the governed three-dam export manifest records all report hashes.

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04MH0084
District	Jamnagar
Taluka	Lalpur
River	Puna
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	earthen
FRL (m)	24.39
HFL (m)	25.6
Top of dam (m)	27.83
Spillway crest (m)	24.39
Gross storage (Mm³)	7.85
Catchment (km²)	137.0
Bed level, adopted (m)	18.9
Head, documented (m)	8.93
Head in DEM before correction (m)	7.62
Head after DEM correction (m)	8.93
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.11	9	678.77	844.62	774.40	40.36	`../Puna/S_EG_00__S02-FW-PIP/`	`23b4a6ba27f2fdb2`	2026-09-02T19:28
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	9	—	—	—	—	`../Puna/S_EG_00_REF__S01-FW-REF/`	`4fb9f41d368784df`	2026-09-02T19:15
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	9	—	—	—	—	`../Puna/S_EG_01__S03-DF-REF/`	`58556b0d456fc718`	2026-09-02T19:21
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.02	9	1,342.30	1,729.34	774.40	51.11	`../Puna/S_EG_03__S05-DF-PIP/`	`f5b5338d797886ca`	2026-09-02T19:34
`S_EG_05_SBL`	`S08-SO-L`	retained	note	1.27	9	1,307.88	—	48.00	60.00	`../Puna/S_EG_05_SBL__S08-SO-L/`	`c416092e80e5c42a`	2026-09-02T19:41
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.98	9	1,288.28	—	1,922.00	60.00	`../Puna/S_EG_05_SBR__S09-SO-H/`	`601ba701bd71f198`	2026-09-02T19:48

Assets

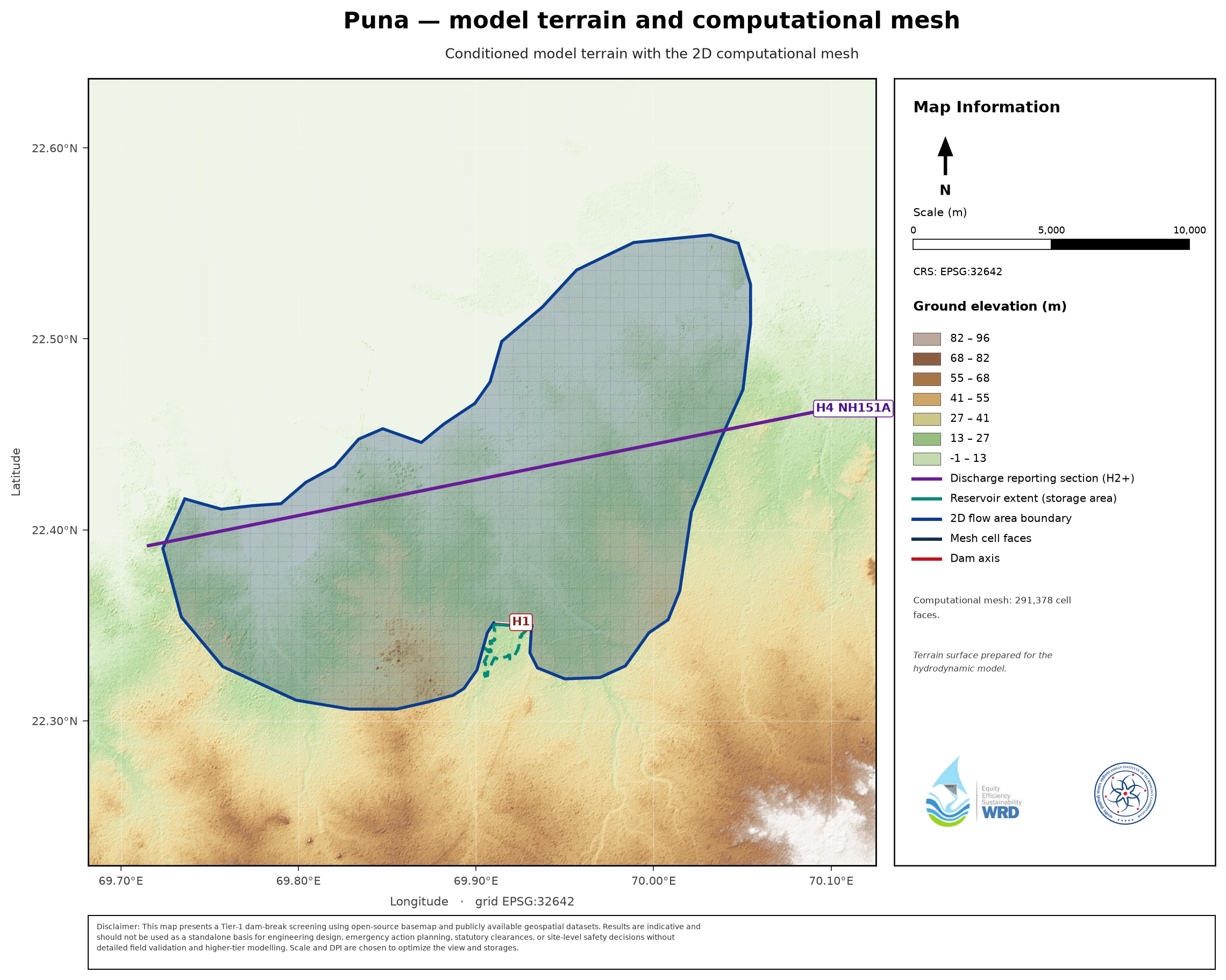

terrain plate (Fig 3.1): _maps/Puna__dem.png

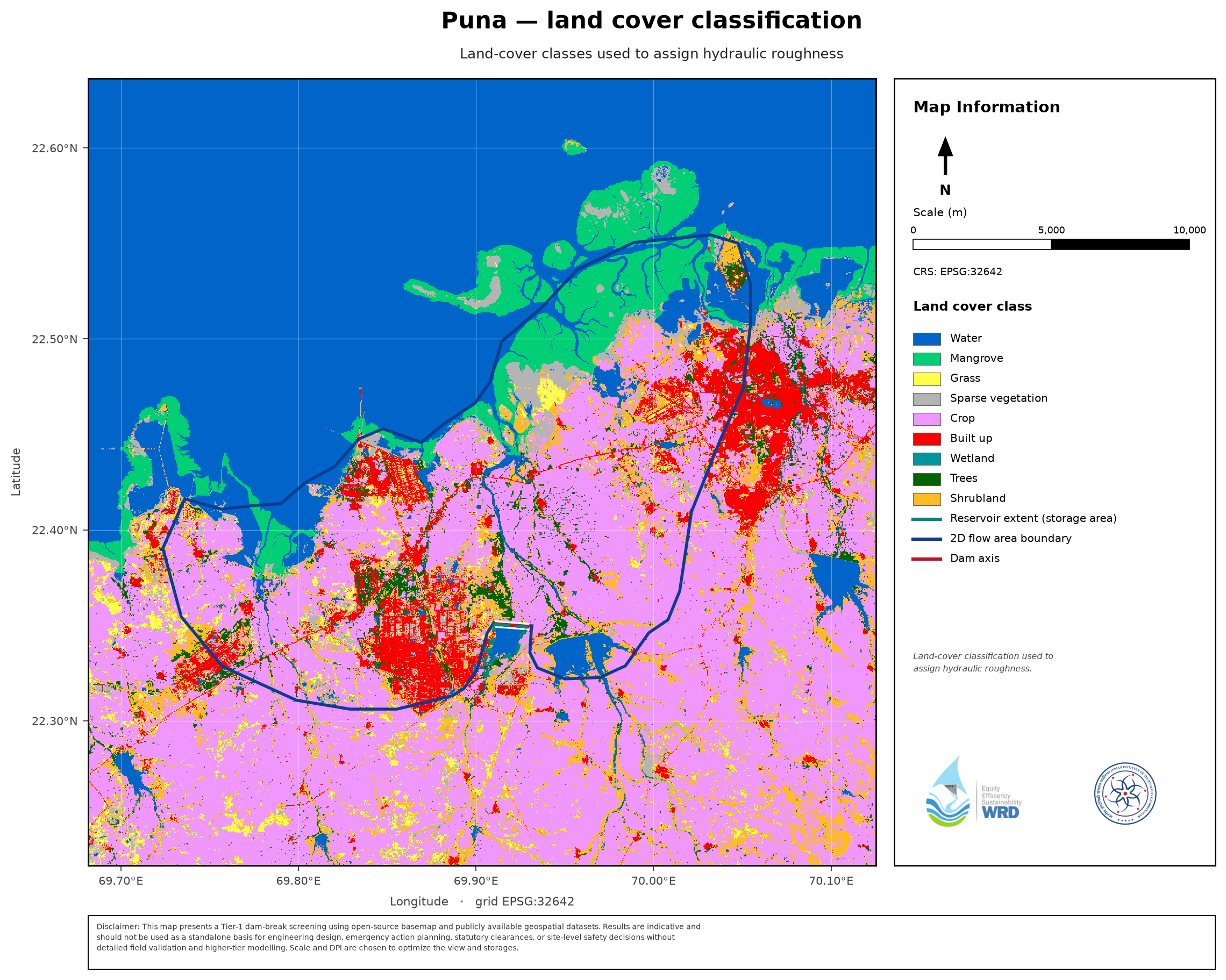

land-cover plate (Fig 3.2): _maps/Puna__lulc.png
storage curve: _storage_curves/Puna__storage_elevation.csv
inflow flood hydrograph: _infofiles/Puna__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Puna__inflow_baseflow_hydrograph.csv

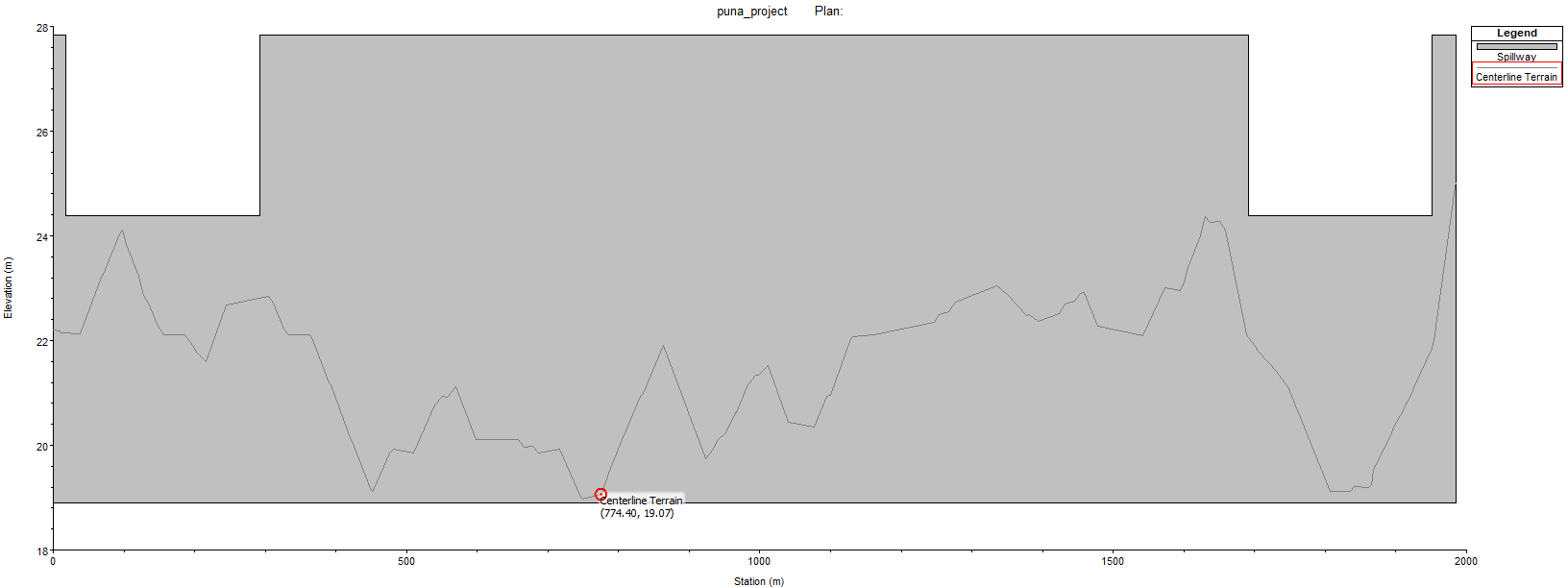

breach location (supplier): _infofiles/Puna__breach_location.png

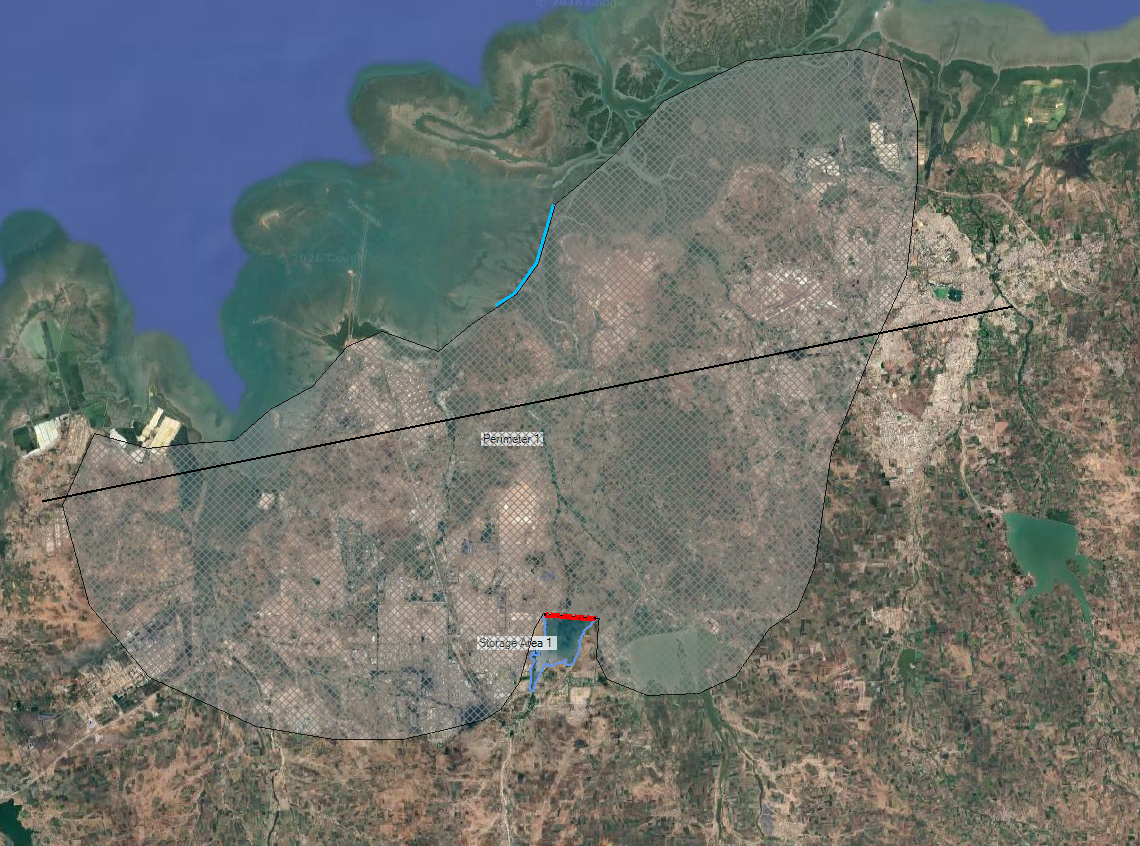

mesh: _infofiles/Puna__mesh.png
infofile: _infofiles/Puna__infofile.csv
DEM correction: _infofiles/Puna__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Puna
PAR / exposure: _par/Puna
EAP figures (exposure curve + warning scatter, log y): _figures/Puna
atlases: Puna__S_EG_00_REF__S01-FW-REF, Puna__S_EG_00__S02-FW-PIP, Puna__S_EG_01__S03-DF-REF, Puna__S_EG_03__S05-DF-PIP, Puna__S_EG_05_SBL__S08-SO-L, Puna__S_EG_05_SBR__S09-SO-H
