Surajwadi

all dams · full registry · generated 2026-08-16 11:18 · PIC GJ208MH0764 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

Assets pending — not ready to print: PAR, fields, EAP figures

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.16	7	993.18	1,170.33	1,010.84	35.99	`../Surajwadi/S_EG_00__S02-FW-PIP/`	`7497b288734fb148`	2026-08-11T18:55
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	7	—	—	—	—	`../Surajwadi/S_EG_00_REF__S01-FW-REF/`	`9b51c02c88ca1334`	2026-08-11T18:55
`S_EG_01`	`S03-DF-REF`	retained	clean	0.01	7	—	—	—	—	`../Surajwadi/S_EG_01__S03-DF-REF/`	`b1464837823c7305`	2026-08-11T18:55
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.07	7	2,068.35	1,892.73	1,010.84	43.80	`../Surajwadi/S_EG_03__S05-DF-PIP/`	`7c15ed6ea56ef450`	2026-08-11T18:55
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.06	7	1,492.82	—	1,515.00	60.00	`../Surajwadi/S_EG_05_SBL__S08-SO-L/`	`bfde0b0e7f47b48a`	2026-08-11T18:55
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.01	7	1,410.30	—	1,775.00	60.00	`../Surajwadi/S_EG_05_SBR__S09-SO-H/`	`e8fa9080614fe412`	2026-08-11T18:55

Assets

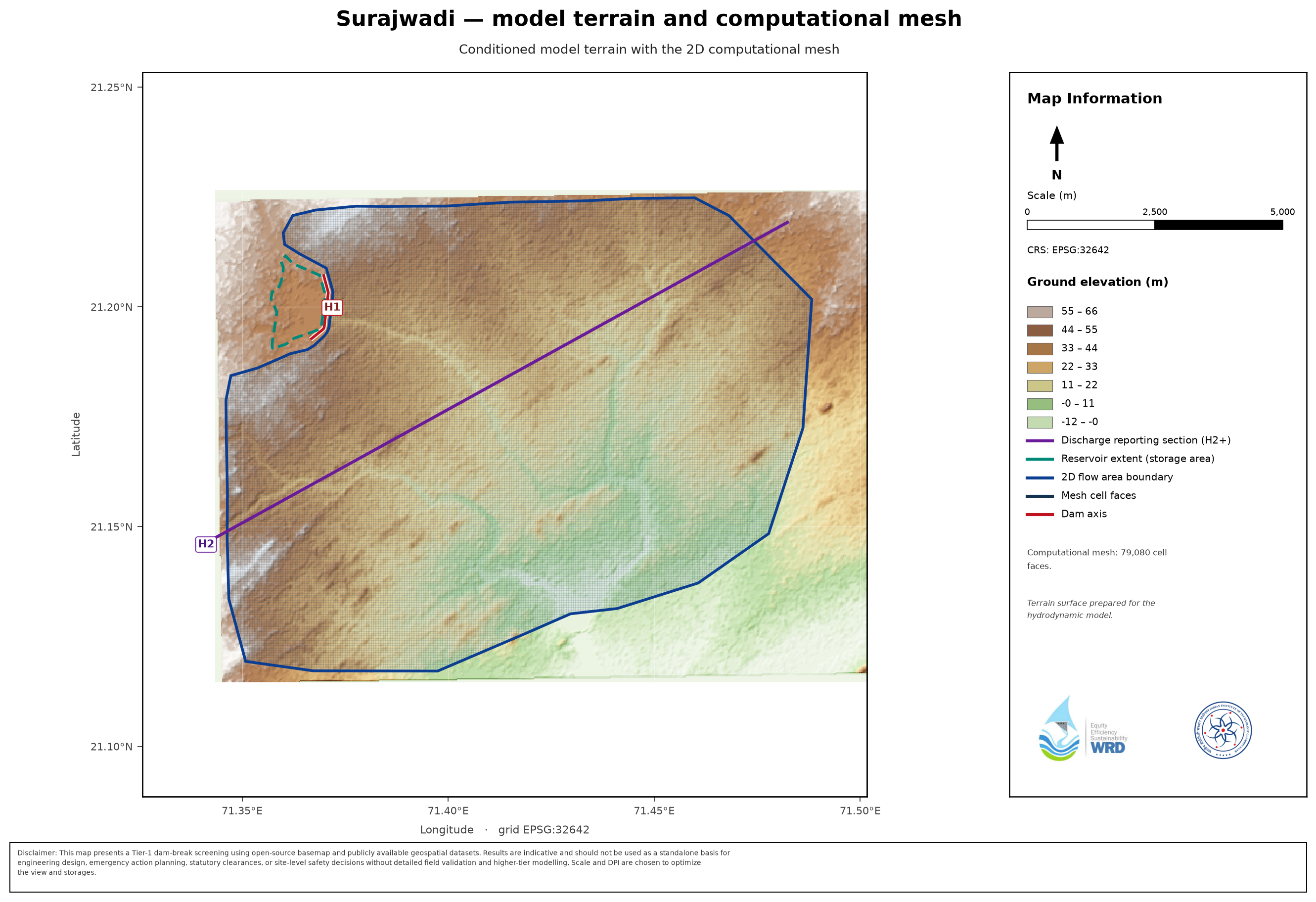

terrain plate (Fig 3.1): _maps/Surajwadi__dem.png

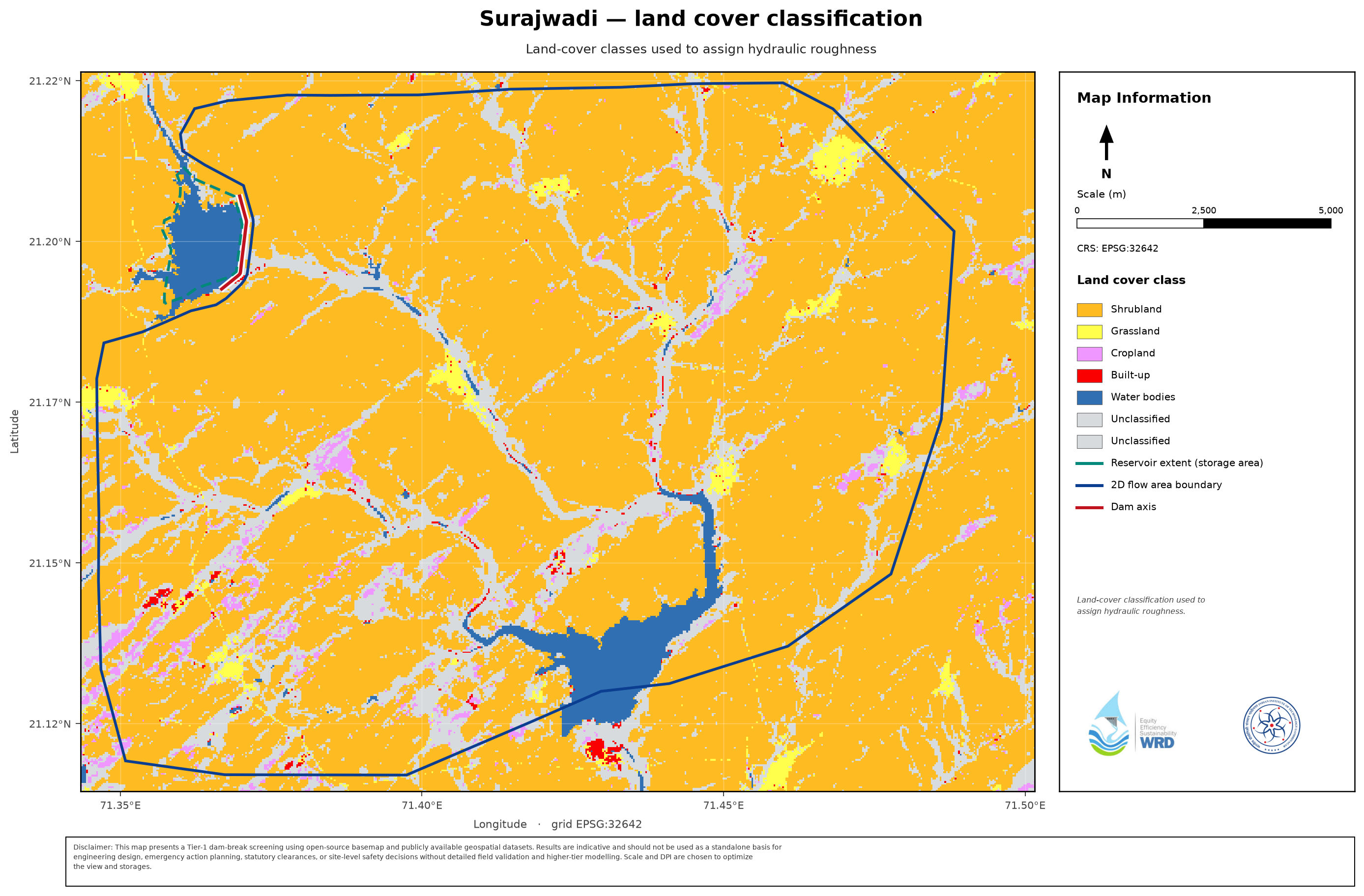

land-cover plate (Fig 3.2): _maps/Surajwadi__lulc.png
storage curve: _storage_curves/Surajwadi__storage_elevation.csv
inflow flood hydrograph: _infofiles/Surajwadi__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Surajwadi__inflow_baseflow_hydrograph.csv

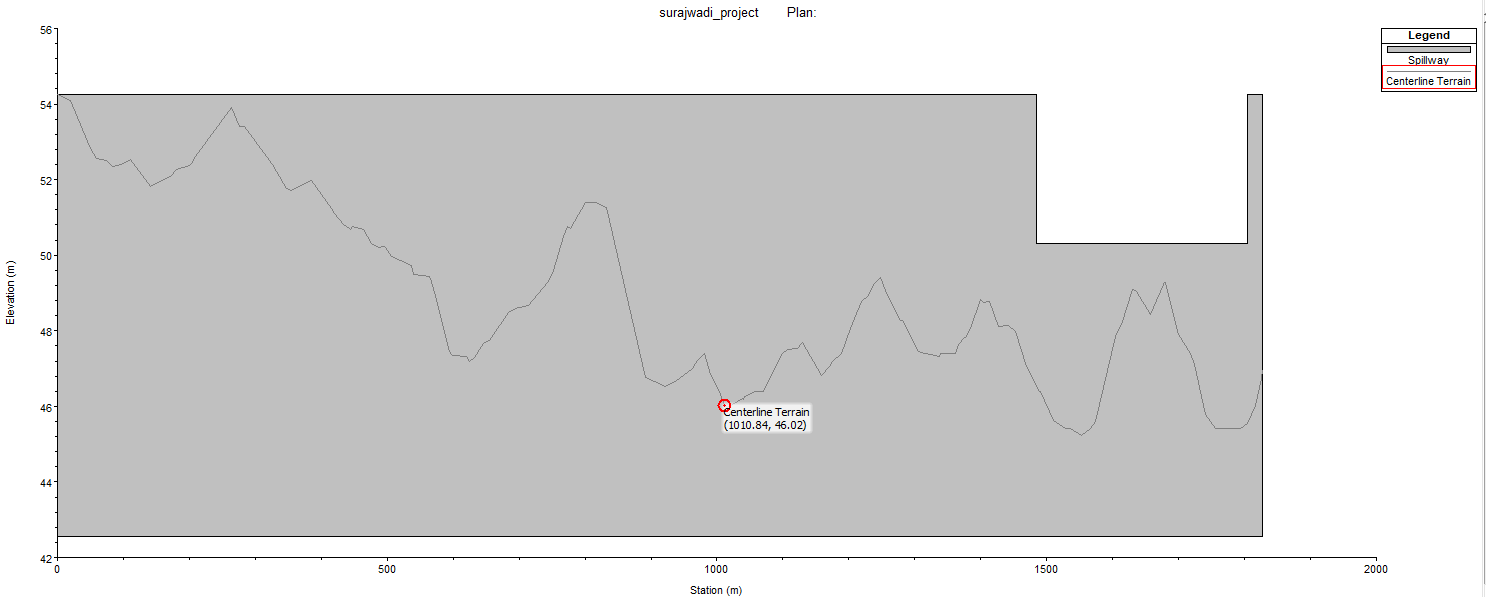

breach location (supplier): _infofiles/Surajwadi__breach_location.png

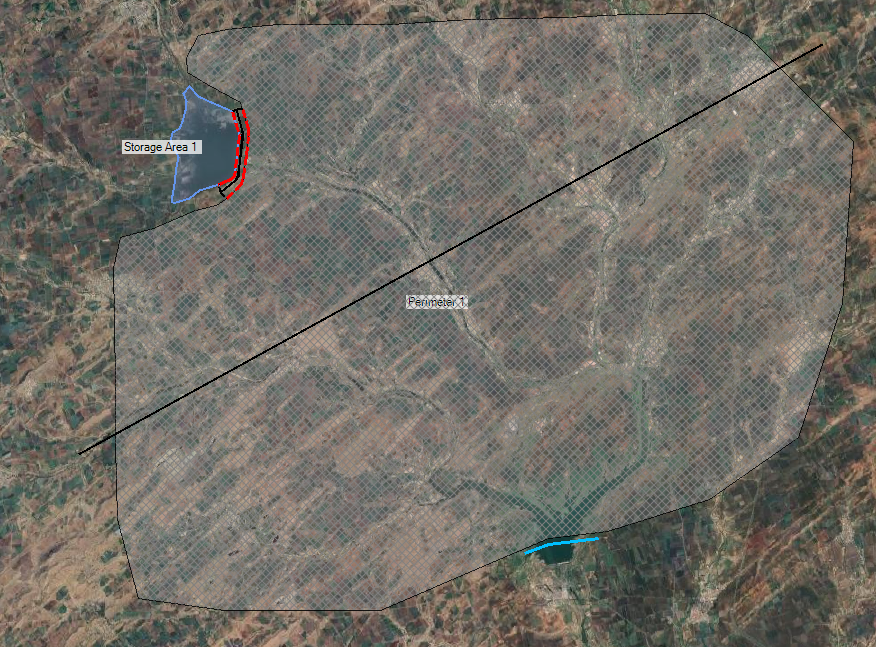

mesh: _infofiles/Surajwadi__mesh.png
infofile: _infofiles/Surajwadi__infofile.csv
DEM correction: _infofiles/Surajwadi__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Surajwadi
PAR / exposure: —
EAP figures (exposure curve + warning scatter, log y): —
atlases: Surajwadi__S_EG_00_REF__S01-FW-REF, Surajwadi__S_EG_00__S02-FW-PIP, Surajwadi__S_EG_01__S03-DF-REF, Surajwadi__S_EG_03__S05-DF-PIP, Surajwadi__S_EG_05_SBL__S08-SO-L, Surajwadi__S_EG_05_SBR__S09-SO-H
