Vagadi

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ208MH0787 · CRS EPSG:32643

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (UNCHANGED_CURRENT60_PREDECESSOR_HASH_VERIFIED; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ208MH0787
District	Sabarkantha
Taluka	Himatnagar
River	Vagadi
Projected CRS	EPSG:32643 / UTM Zone 43N (WGS 84)
Dam type	Earthen dam
FRL (m)	44.5
HFL (m)	46.35
Top of dam (m)	48.5
Spillway crest (m)	44.5
Design spillway capacity (m³/s)	173.98
Gross storage (Mm³)	0.8
Catchment (km²)	9.07
Bed level, adopted (m)	37.5
Head, documented (m)	11.0
Head in DEM before correction (m)	-116.03
Head after DEM correction (m)	11.0
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.32	8	379.91	297.75	127.97	14.85	`../Vagadi/S_EG_00__S02-FW-PIP/`	`2a1eadabe926d325`	2026-08-27T06:30
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	8	—	—	—	—	`../Vagadi/S_EG_00_REF__S01-FW-REF/`	`4911374db61d0d65`	2026-08-27T06:11
`S_EG_01`	`S03-DF-REF`	retained	clean	0.02	8	—	—	—	—	`../Vagadi/S_EG_01__S03-DF-REF/`	`f243e1e7f37252b0`	2026-08-27T06:24
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.13	8	586.91	500.76	127.97	18.18	`../Vagadi/S_EG_03__S05-DF-PIP/`	`4725dd314ad876b3`	2026-08-27T06:37
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.48	8	446.37	—	509.00	32.00	`../Vagadi/S_EG_05_SBL__S08-SO-L/`	`2fb84a7572a85458`	2026-08-27T07:20
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.48	8	446.37	—	509.00	32.00	`../Vagadi/S_EG_05_SBR__S09-SO-H/`	`242a32a3312a9cbe`	2026-08-27T07:23

Assets

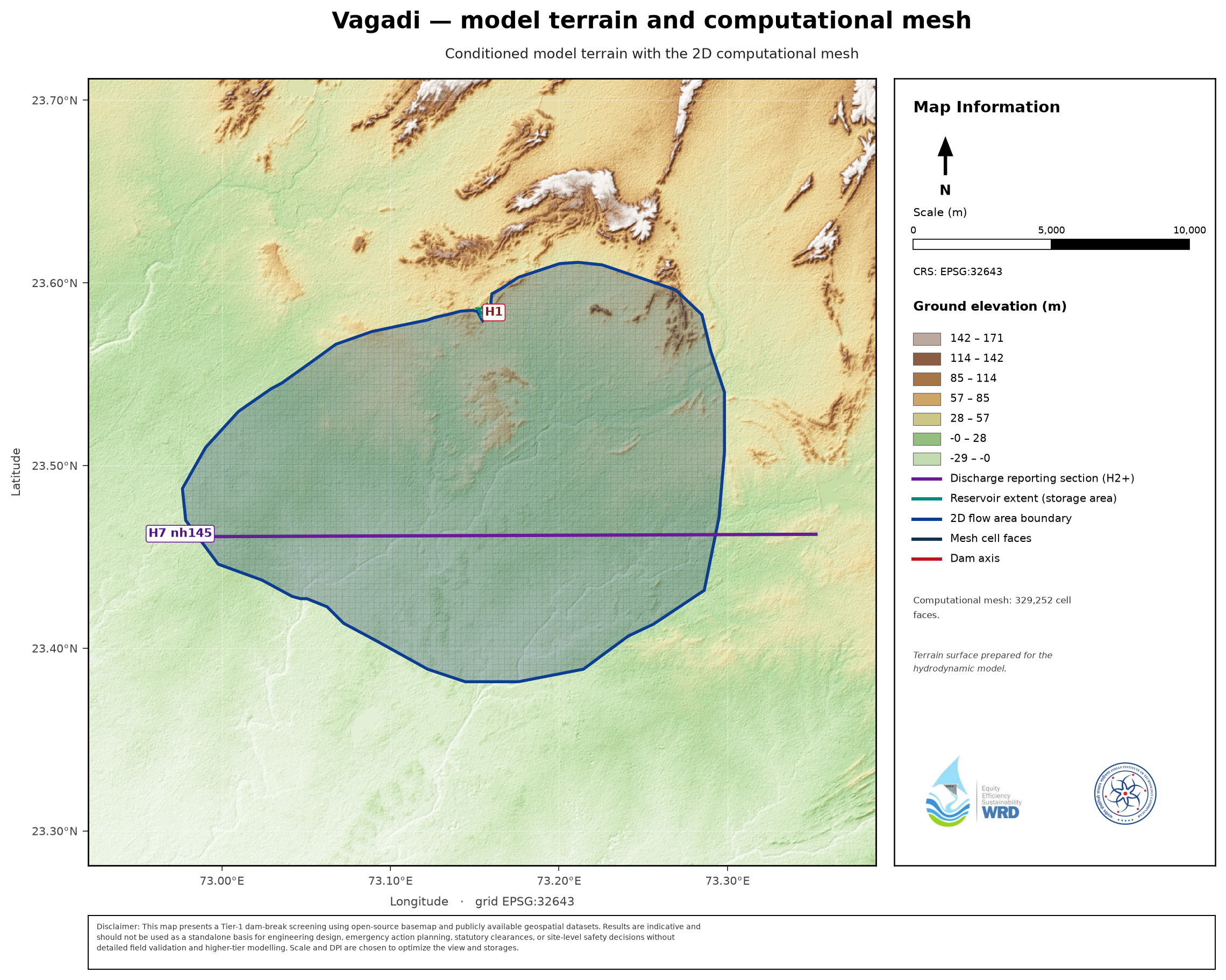

terrain plate (Fig 3.1): _maps/Vagadi__dem.png

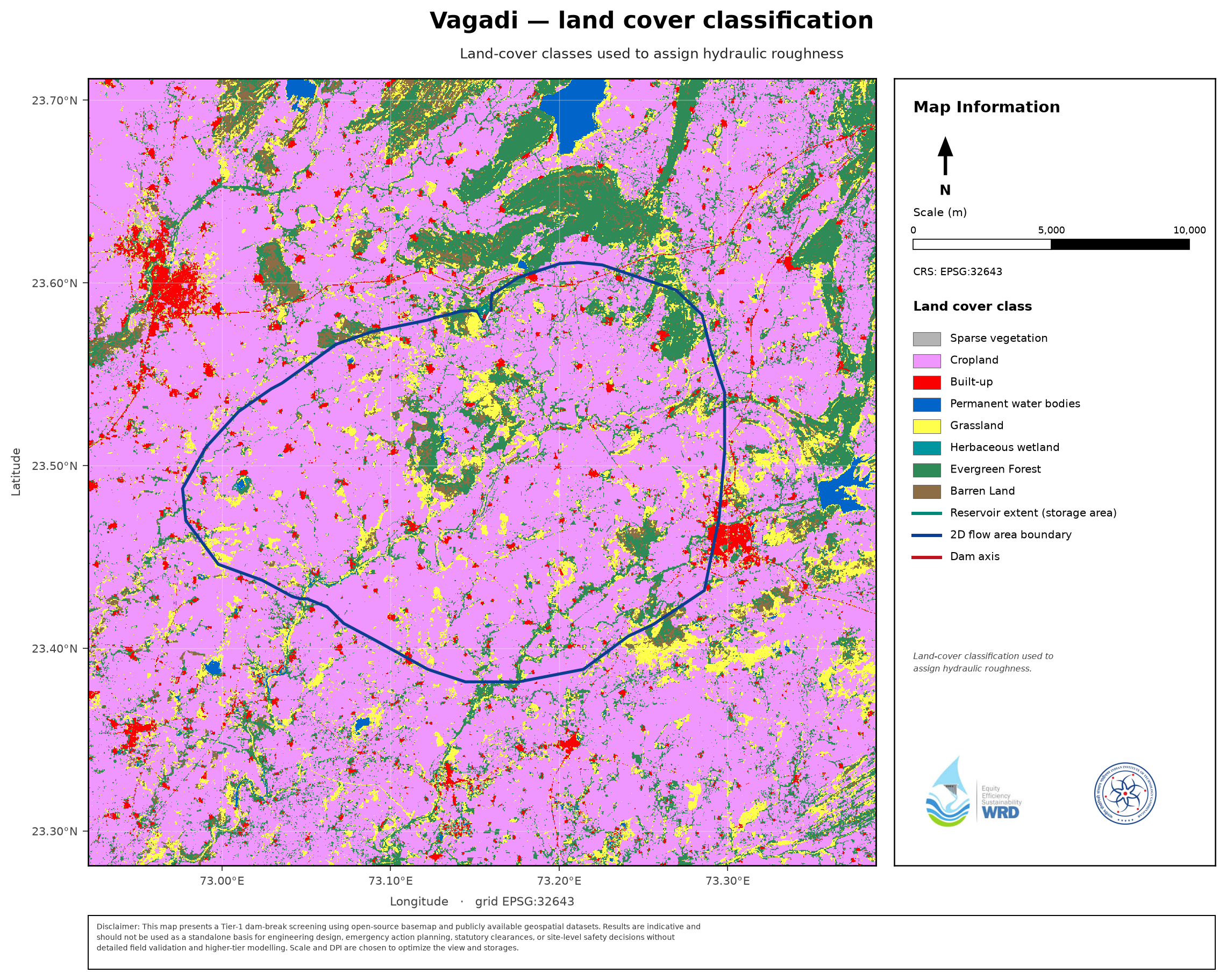

land-cover plate (Fig 3.2): _maps/Vagadi__lulc.png
storage curve: _storage_curves/Vagadi__storage_elevation.csv
inflow flood hydrograph: _infofiles/Vagadi__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Vagadi__inflow_baseflow_hydrograph.csv

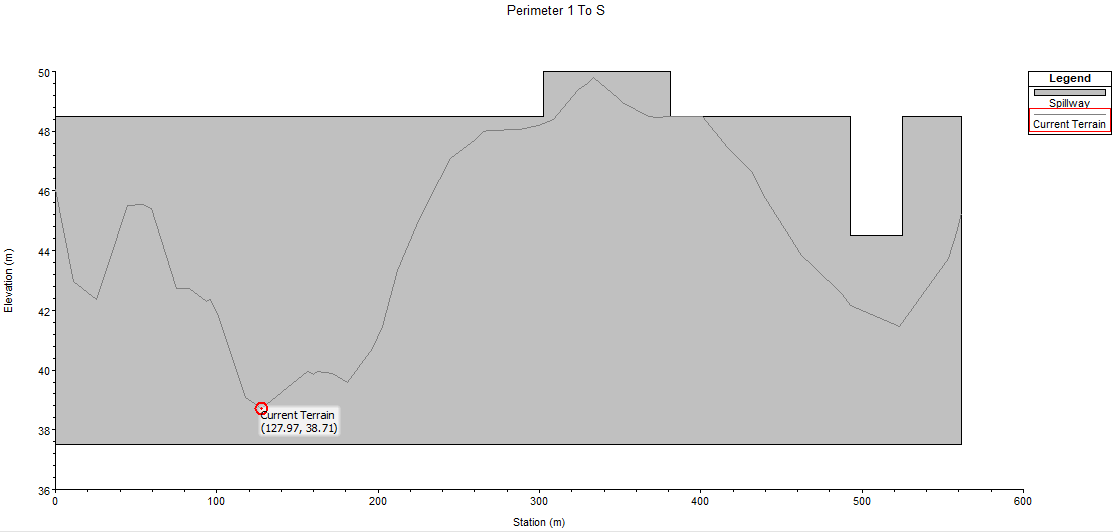

breach location (supplier): _infofiles/Vagadi__breach_location.png

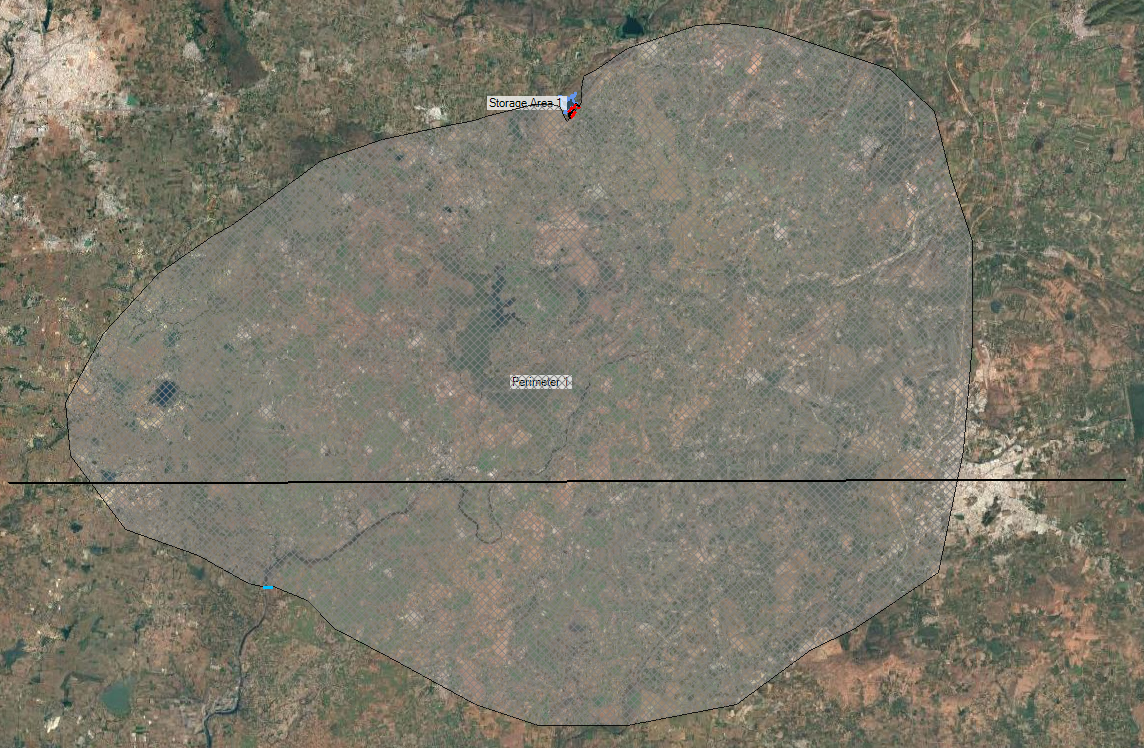

mesh: _infofiles/Vagadi__mesh.png
infofile: _infofiles/Vagadi__infofile.csv
DEM correction: _infofiles/Vagadi__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Vagadi
PAR / exposure: _par/Vagadi
EAP figures (exposure curve + warning scatter, log y): _figures/Vagadi
atlases: Vagadi__S_EG_00_REF__S01-FW-REF, Vagadi__S_EG_00__S02-FW-PIP, Vagadi__S_EG_01__S03-DF-REF, Vagadi__S_EG_03__S05-DF-PIP, Vagadi__S_EG_05_SBL__S08-SO-L, Vagadi__S_EG_05_SBR__S09-SO-H
