Wodisang

all dams · full registry · dam table · generated 2026-10-15 23:03 · PIC GJ04MH0553 · CRS EPSG:32642

6current scenarios

6renderable

0running again

0retired · not in master

report: current — V2 delivery, DBA/EAP/PCI bytes match CURRENT_DELIVERY_INDEX d9277f54 (ACTUAL_FOCUSED_ATLAS_TWO_ROOT_DELIVERY_READBACK; format PASS) Verdict from the current delivery index (~/100_Dams_Deliverables/CURRENT_DELIVERY_INDEX.json), else the delivery roots (~/final_100_dam_delivery, ~/final_100_dam_codex_report_delivery); the report thread has filed no note for this dam (REPORT_STATUS.json).

Salient features (as used in the runs)

From the supplied salient-features document and the dam's dem_correction.csv datum authority — also in registry.csv by column name.

Dam code (PIC)	GJ04MH0553
District	Jamnagar
Taluka	Jamnagar
River	Fulzar
Projected CRS	EPSG:32642 / UTM Zone 42N (WGS 84)
Dam type	Rolled filled zone type
FRL (m)	76.5
HFL (m)	79.0
Top of dam (m)	80.9
Spillway crest (m)	76.5
Gross storage (Mm³)	7.099
Catchment (km²)	229.21
Bed level, adopted (m)	65.7
Head, documented (m)	15.2
Head in DEM before correction (m)	10.196
Head after DEM correction (m)	15.2
Solver	Shallow Water Equations - Eulerian Method (SWE-EM) solver

✓ DONE — evidence and every asset family present and verified.

Every package listed below is current. The master never holds a superseded or defective artefact — replacements overwrite on acceptance and the retired copy is removed in the same action (verified by audit_master_store.py).

Scenarios

run id	canonical	status	band	vol err %	distinct n	Q modelled (breach only)	Q_semi	station	W_b	package in master	sha256	accepted
`S_EG_00`	`S02-FW-PIP`	retained	clean	0.20	7	1,786.72	1,968.47	411.00	35.08	`../Wodisang/S_EG_00__S02-FW-PIP/`	`68e92ffb5e579c68`	2026-09-17T18:59
`S_EG_00_REF`	`S01-FW-REF`	retained	clean	0.00	7	—	—	—	—	`../Wodisang/S_EG_00_REF__S01-FW-REF/`	`1f34271306ded7da`	2026-09-17T18:44
`S_EG_01`	`S03-DF-REF`	retained	clean	0.00	7	—	—	—	—	`../Wodisang/S_EG_01__S03-DF-REF/`	`983ad7eba9ae172e`	2026-09-17T18:52
`S_EG_03`	`S05-DF-PIP`	retained	clean	0.03	7	3,257.93	3,765.42	411.00	45.84	`../Wodisang/S_EG_03__S05-DF-PIP/`	`f7caa13ccd0e03fd`	2026-09-17T19:07
`S_EG_05_SBL`	`S08-SO-L`	retained	clean	0.02	7	2,960.90	—	475.00	60.00	`../Wodisang/S_EG_05_SBL__S08-SO-L/`	`c1bf23aa47aea3dc`	2026-09-27T05:50
`S_EG_05_SBR`	`S09-SO-H`	retained	clean	0.02	7	2,961.09	—	786.70	60.00	`../Wodisang/S_EG_05_SBR__S09-SO-H/`	`7a886f5f6c5692a0`	2026-09-27T05:50

Assets

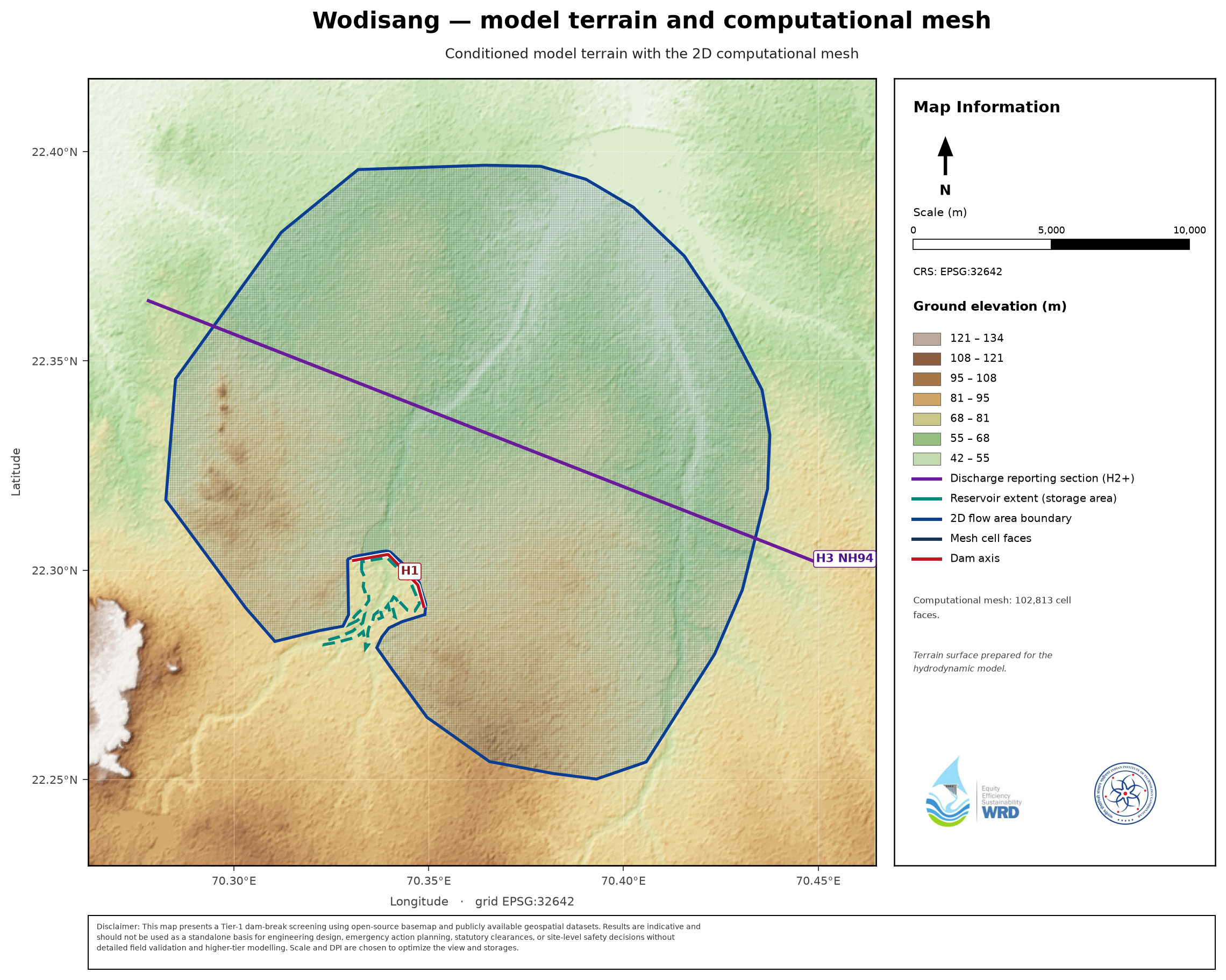

terrain plate (Fig 3.1): _maps/Wodisang__dem.png

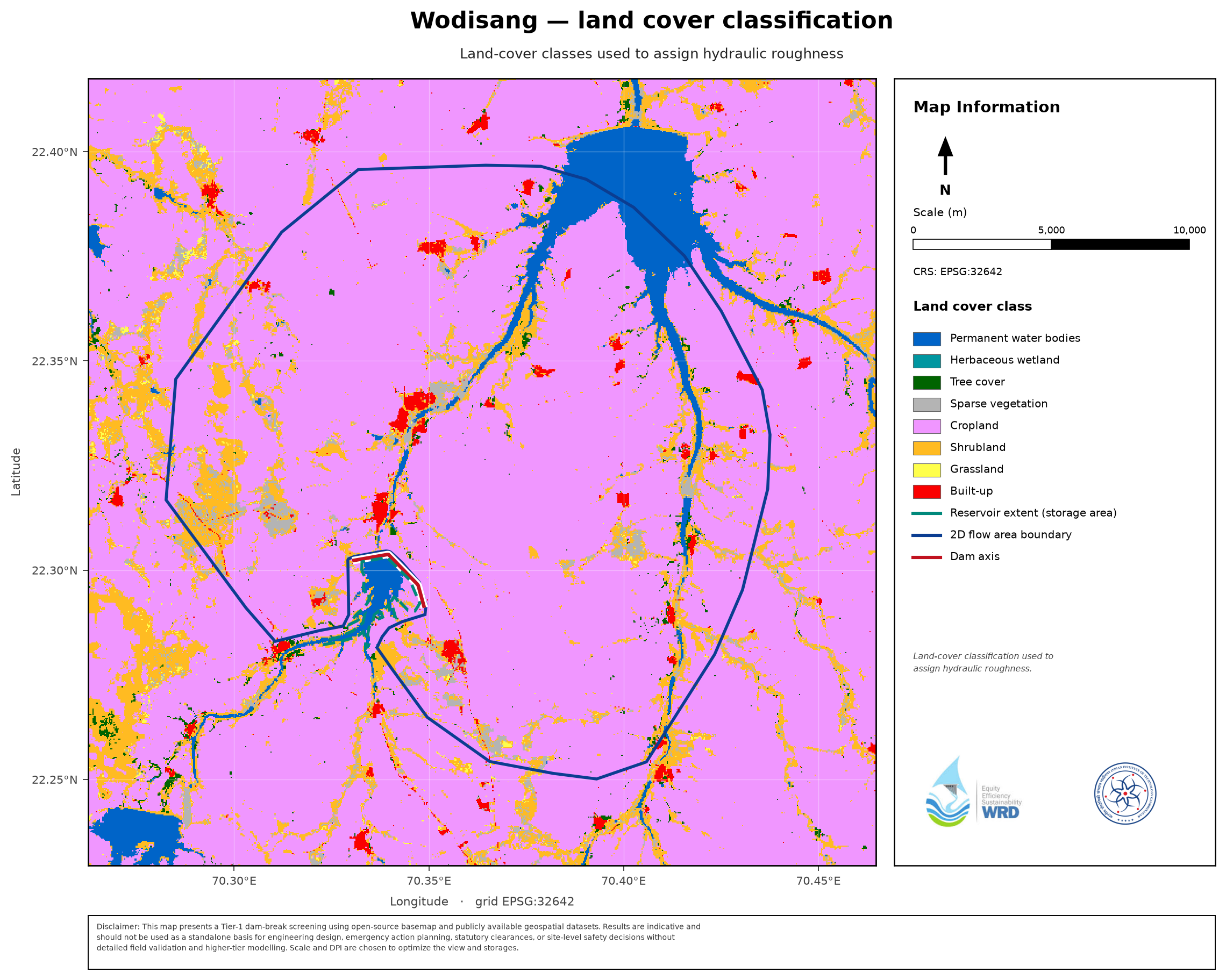

land-cover plate (Fig 3.2): _maps/Wodisang__lulc.png
storage curve: _storage_curves/Wodisang__storage_elevation.csv
inflow flood hydrograph: _infofiles/Wodisang__inflow_flood_hydrograph.csv
inflow baseflow hydrograph: _infofiles/Wodisang__inflow_baseflow_hydrograph.csv

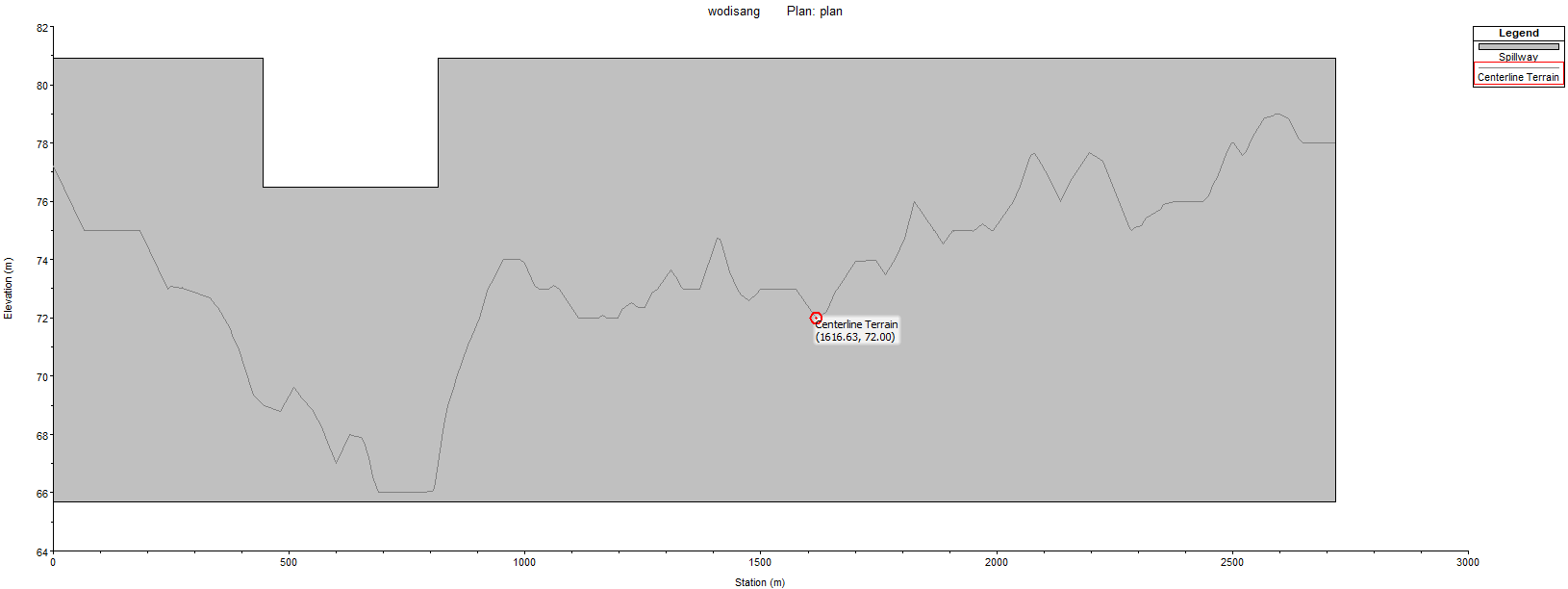

breach location (supplier): _infofiles/Wodisang__breach_location.png

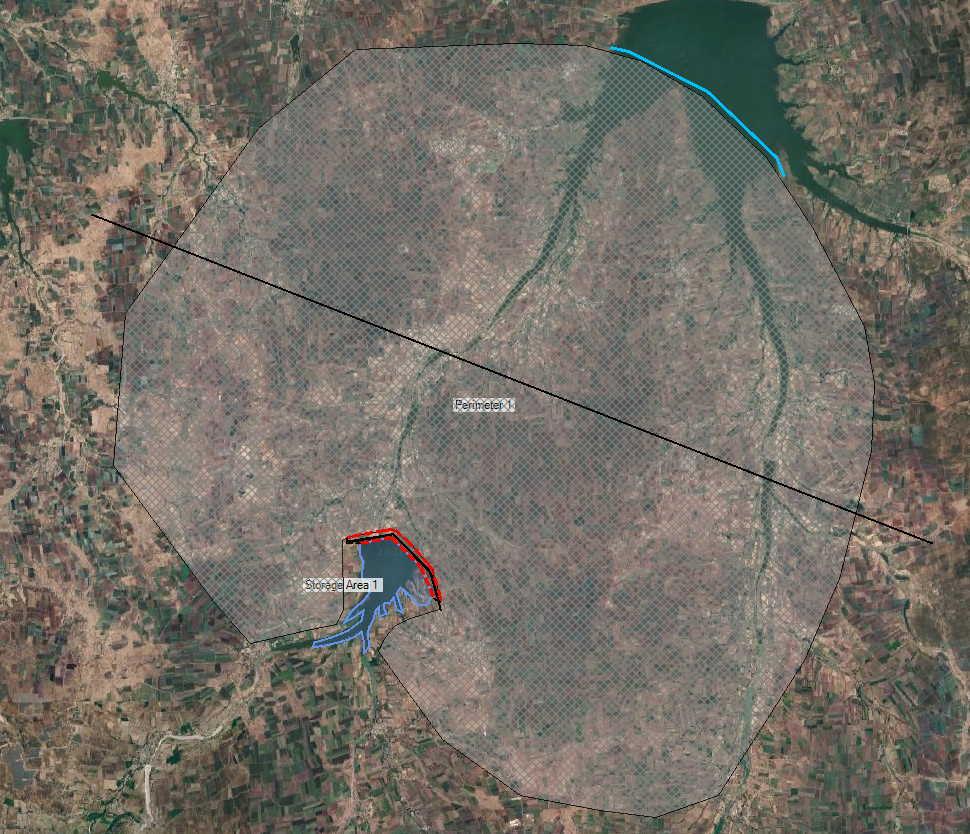

mesh: _infofiles/Wodisang__mesh.png
infofile: _infofiles/Wodisang__infofile.csv
DEM correction: _infofiles/Wodisang__dem_correction.csv
hydrographs — H1 is TOTAL at dam; BREACH_OUTFLOW.csv is the series the CWC relations compare against: _hydrographs/Wodisang
PAR / exposure: _par/Wodisang
EAP figures (exposure curve + warning scatter, log y): _figures/Wodisang
atlases: Wodisang__S_EG_00_REF__S01-FW-REF, Wodisang__S_EG_00__S02-FW-PIP, Wodisang__S_EG_01__S03-DF-REF, Wodisang__S_EG_03__S05-DF-PIP, Wodisang__S_EG_05_SBL__S08-SO-L, Wodisang__S_EG_05_SBR__S09-SO-H
